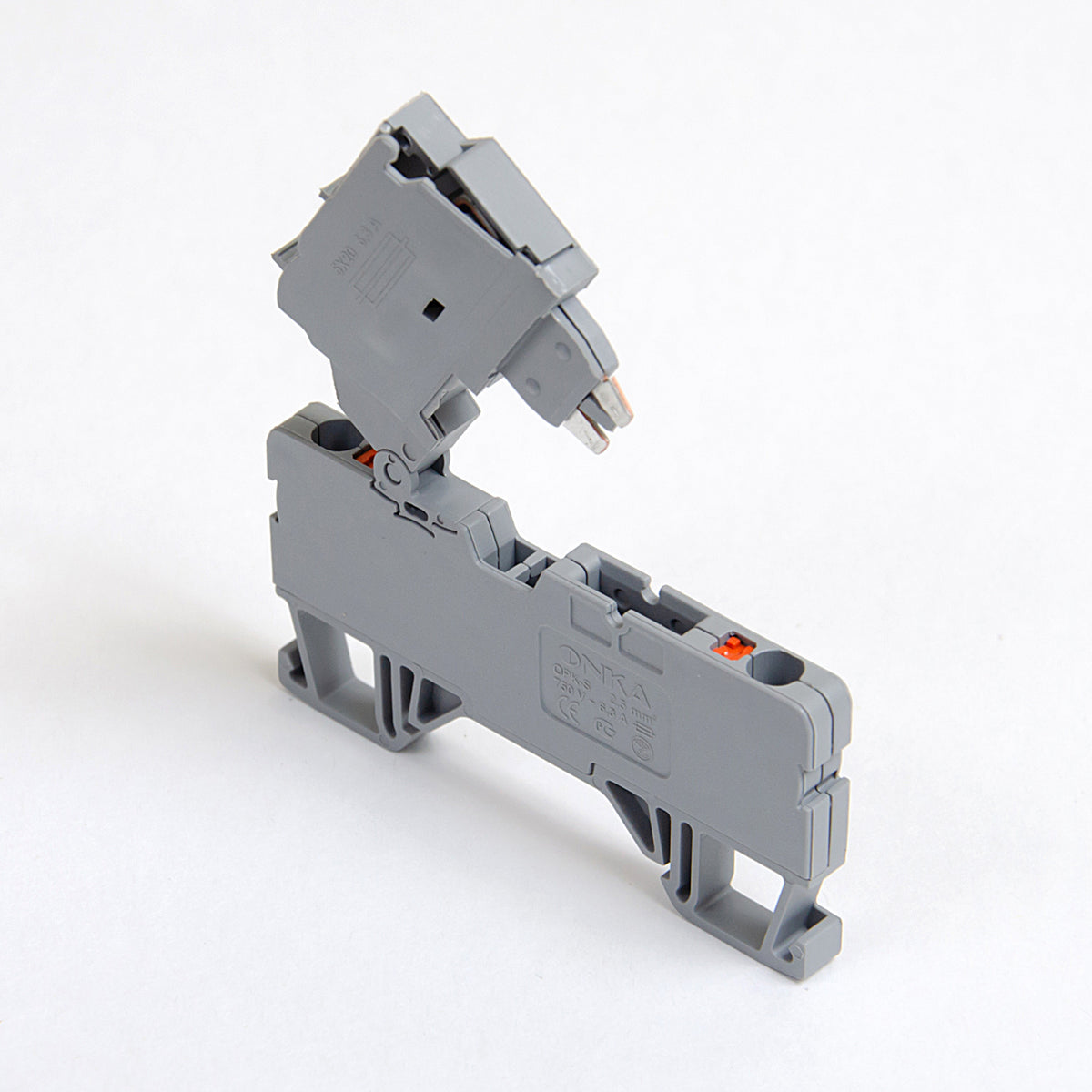

ONKA 2.5 mm2 screw terminal fuse connector block (fuse not included) gray, 1020223
- Regular price
- 1.001 Ft
- Regular price
-
1.001 Ft - Sale price
- 1.001 Ft
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Guarantee
Spring screw connector fuse connector block (fuse not included) 2-wire, gray, ONKA, made in Turkey
It is used for the protection of low-current alternating or direct current circuits. A 5x20 mm fuse is built into the terminal, with a current setting up to 6.3 A. The fuse is not included and must be ordered separately.
Technical specifications
The cross-section of the connected single-core wire is up to: 2.5 mm2
Color: gray
The main housing insulating material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 9 mm
Type of electrical connection: screw clamp
Rated voltage: 750V
Rated current: 6.3A
Operating temperature range: -40°C
Operating temperature range: up to 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
