DIN rail thermostat temperature controller ON - OFF - temperature switches

Barcode: DT-321DIN

Regular price: 12.767 Ft
Regular price: ~~12.767 Ft~~
Sale price: 12.767 Ft
Unit price: per

Out of stock

Product variants

Description
Payment methods
Guarantee

2 points temperature controller / thermostat with external sensor mountable on a rail. ON-OFF ON-OFF control mode, measurement range -30ºC ...+150ºC (made in Turkey, TENSE) DT-321DIN

Thermostat controller with external sensor

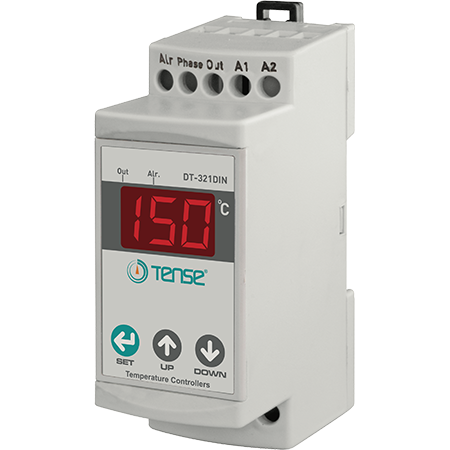

The DT-321DIN temperature controller is characterized by individual usability and is designed for controlling heating or cooling devices. Alternatively, the DT-321DIN can also serve simply as a reader.

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, and industrial plants.

Sensor type: NTC
Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A
Optional heating and cooling function
Hysteresis
Adjustable ON/OFF timers for the OUT output in case of sensor failure
Protection against condensation due to adjustable shutdown times
Upper and lower limit values for SET and ALARM settings
Adjustable separate hysteresis for SET and ALARM settings
Switch-on delay for OUT in cooling mode
EEPROM memory for storing settings
Password protection
High accuracy

Delivery scope:

1x DT-321DIN temperature controller
1x NTC (sensor)
1x user manual (English)

This simple temperature controller can be used with the three types of sensors presented on our website:

Type 1 reference: between -30°C and 105°C - SKU: NTC-105 (accessory)
Type 2 reference: from -30°C to 150°C - SKU: NTC-150
reference for Type 3: from -30°C to 150°C (with nut and thread) - SKU: NTC-S-150

Features:

Power supply: 100-240 VAC, 50/60 Hz
Power consumption: < 6 VA
Sensor type: Sensor type: NTC
Temperature measurement range: between -30 °C and +150 °C
Resolution: +/- 1 °C
Measurement accuracy: +/- 3% (°C), across the entire measurement range
OUT output: Relay (NO + NC), 250V AC, 2A
ALARM output: Relay (NO + NC), 250V AC, 2A
Operating temperature: between 0°C and 50°C
Heating/cooling: Ht (heating), Cl (cooling); optional

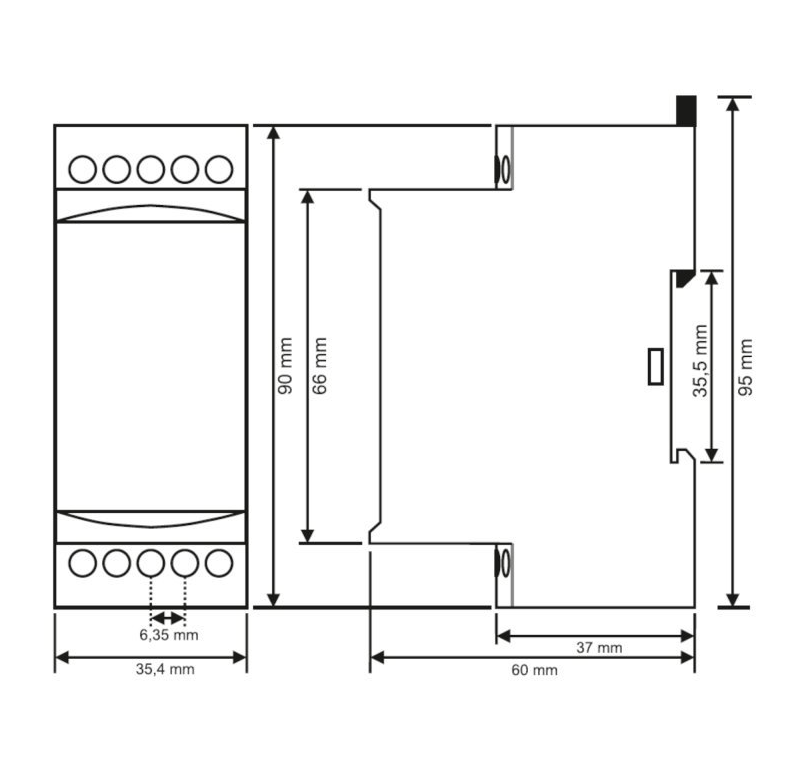

Front panel cutout: 66 x 36 mm
Display: 3-digit - 7 segment

Product type: Temperature measuring device
Protection class: IP00
Brand name: Protective brand: Tense
Country and region of manufacture: Turkey
Power supply: 100V - 240V ~
Connection type: screw terminals
Mounting: DIN rail
Temperature measurement range: -30...+150°C
Temperature relay (NO + NC), 250VAC, 2A, ohmic load
Sensor type: NTC sensor
Shipping weight: 0.12 kg
Item weight: 0.10 kg
Dimensions (length × width × height): 8.50 × 7.80 × 36.00 cm
