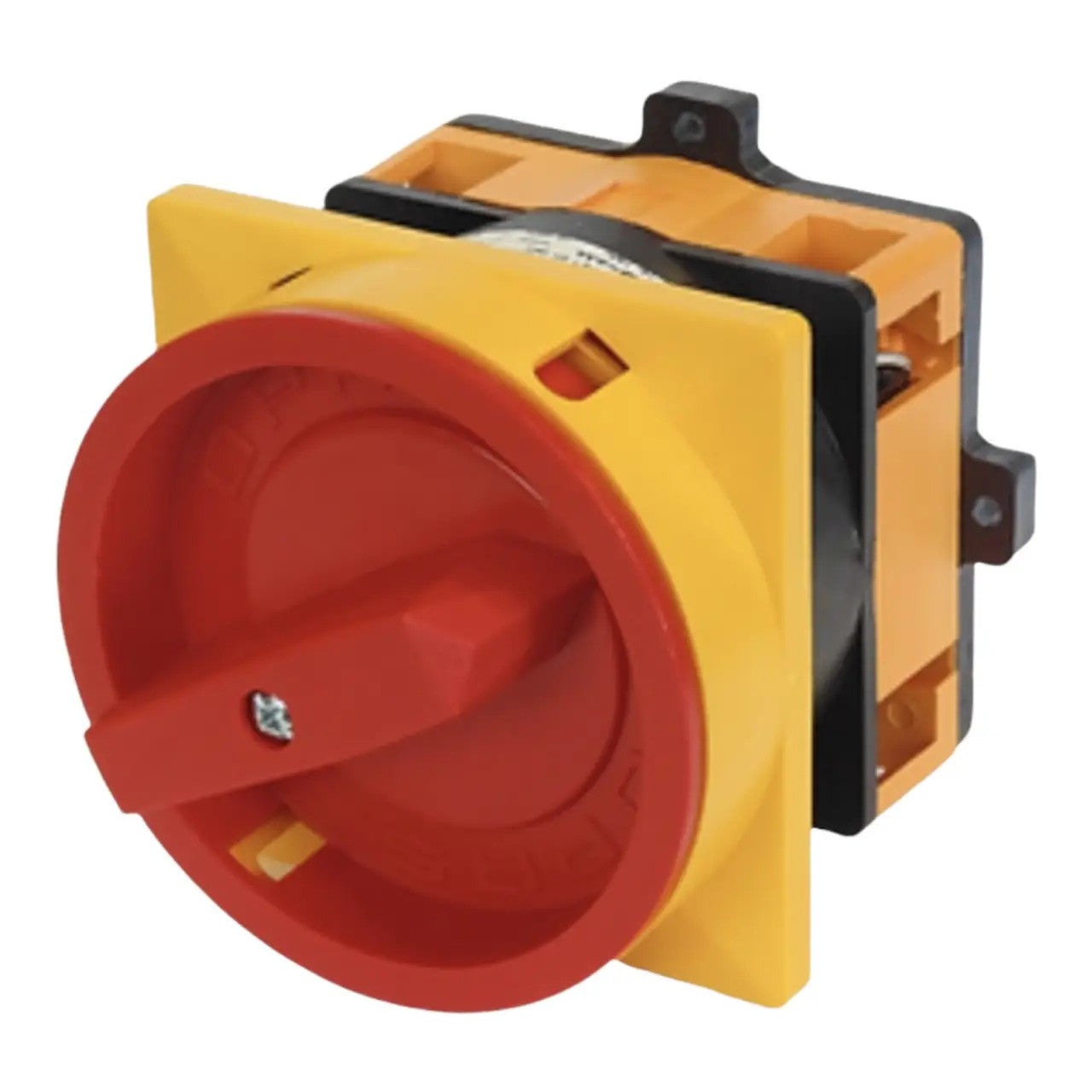

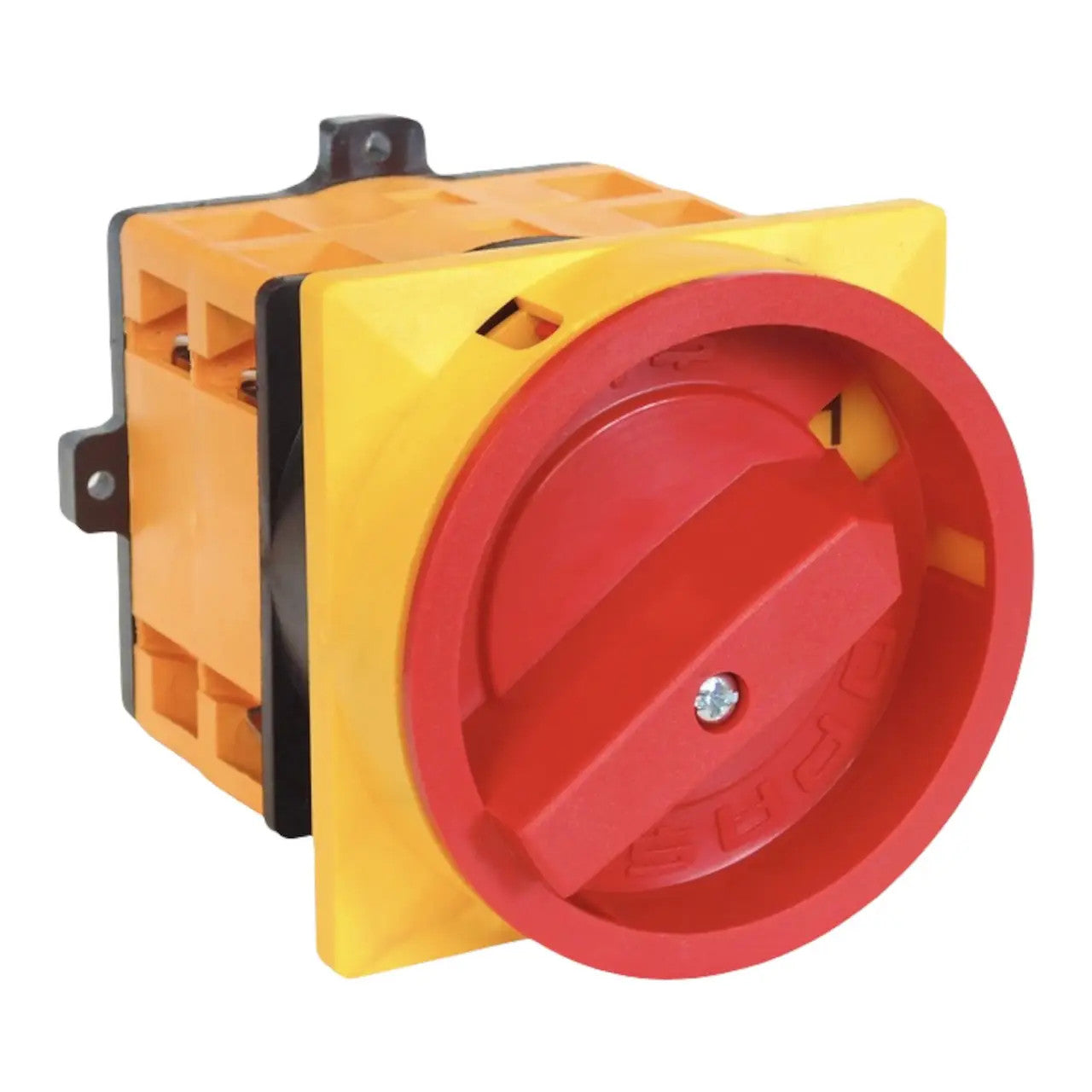

Cam switch ON-OFF (0-1) with latching, YKL101 / YKL201 / YKL301 / YKL401 - manufacturer OPAS (Turkey)

Name: ON-OFF / 0-1 Rotary Switch for Emergency Maintenance, Lockable
Brand: OPAS
SKU: YKL201010
Price: 2196.0 HUF
Availability: OutOfStock

Product description

The cam pack switch is used for manual switching of low-voltage electrical circuits. It is used in main and control circuits, for switching electric motors and other low-power devices on and off.
OPAS switches are characterized by compact size, high electrical and mechanical resistance and long service life.

This model is equipped with a locking mechanism that prevents accidental switching.

Main features

Design.
Device type: rotary switch

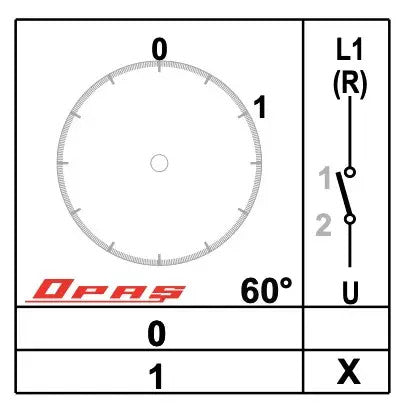

Switching scheme: 0 - 1 (ON-OFF)
Number of poles: 1
Mounting type: Built-in
Number of phases: single-phase
Stop (block): Yes
Degree of protection: IP20
Operating temperature: -30 to +55 °C

Available configurations

Number of poles

1 pole
2 poles
3-pole
4 poles

Rated current 10 A, 16 A, 25 A, 32 A, 40 A, 63 A, 100 A, 125 A, 160 A, 200 A, 250 A, 315 A

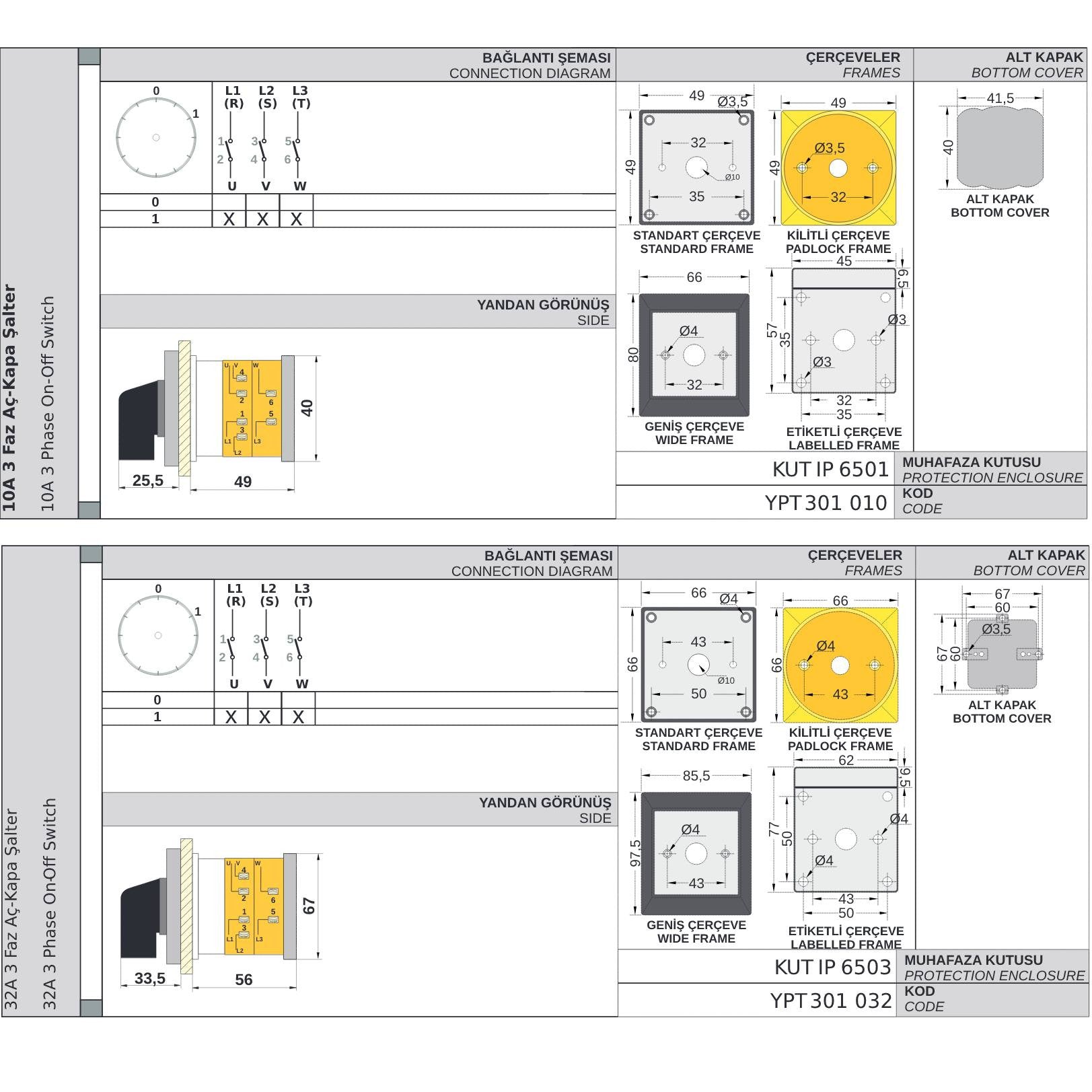

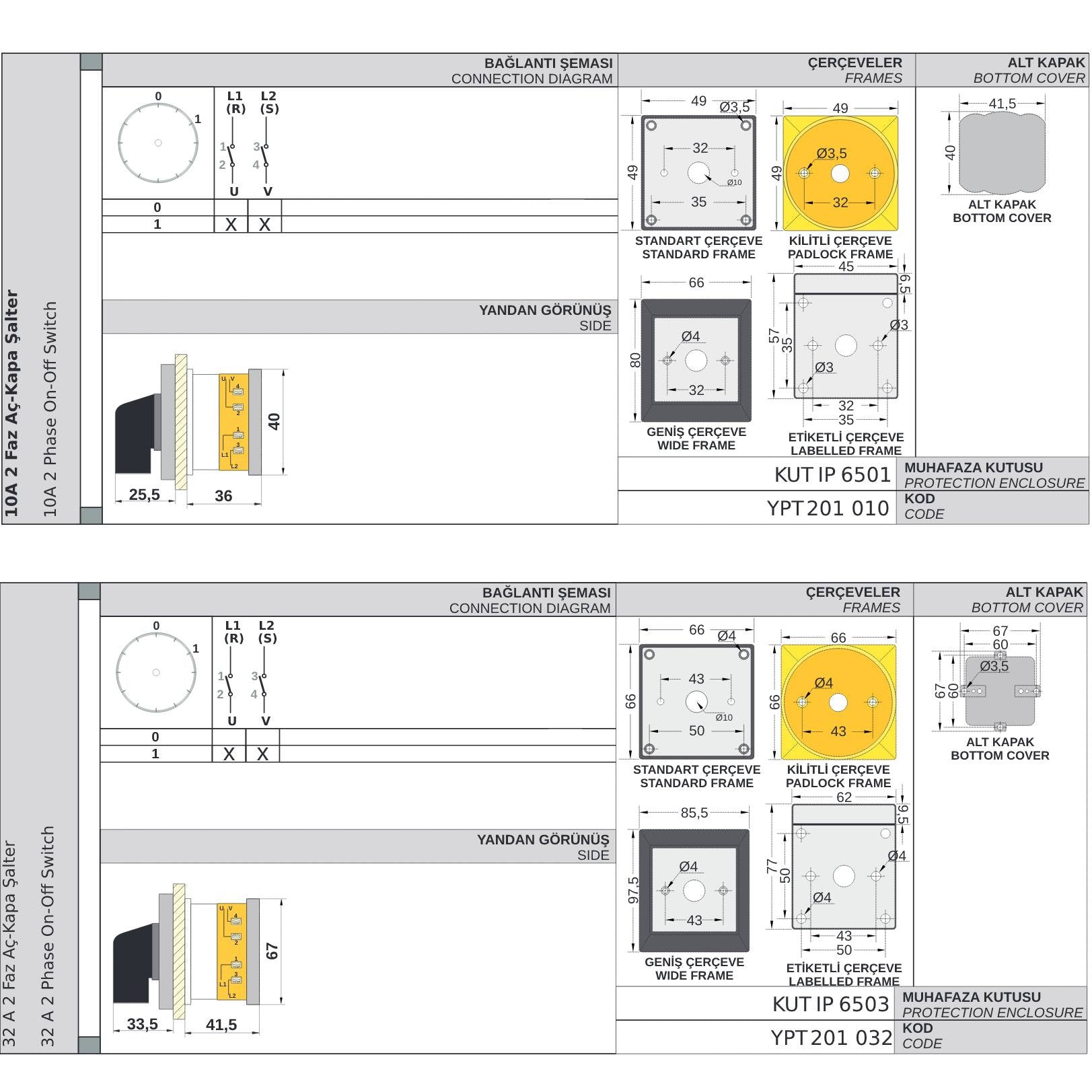

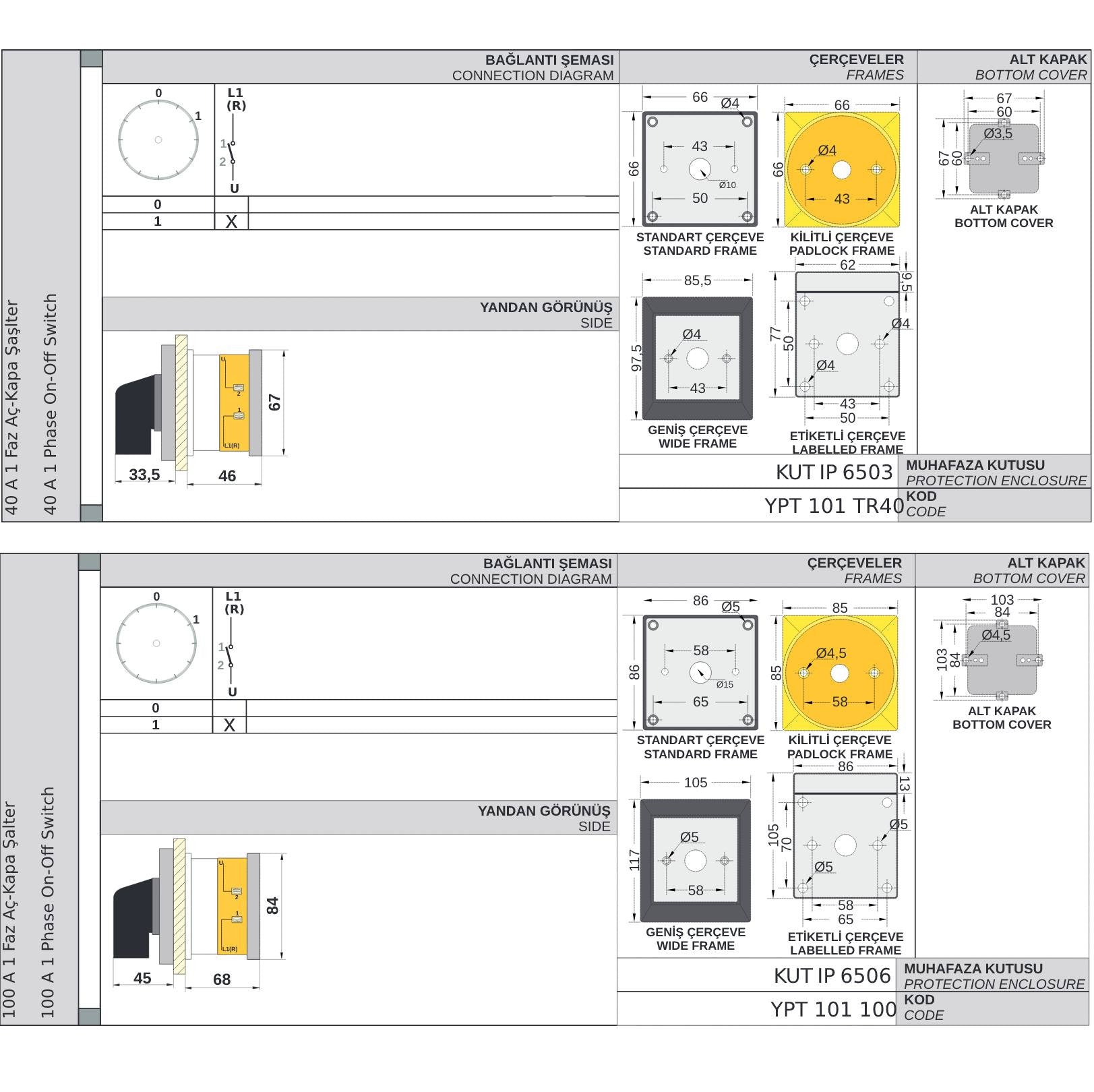

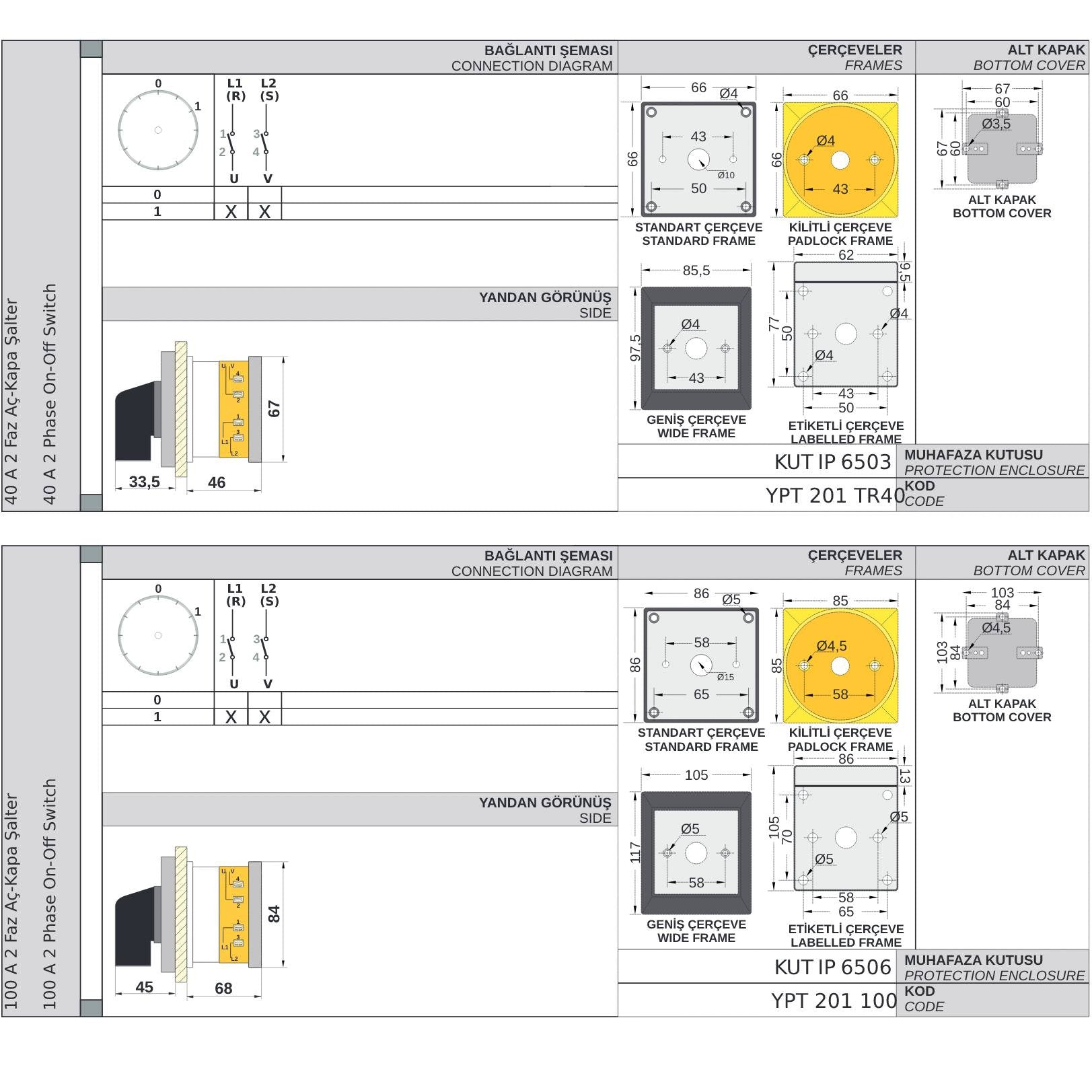

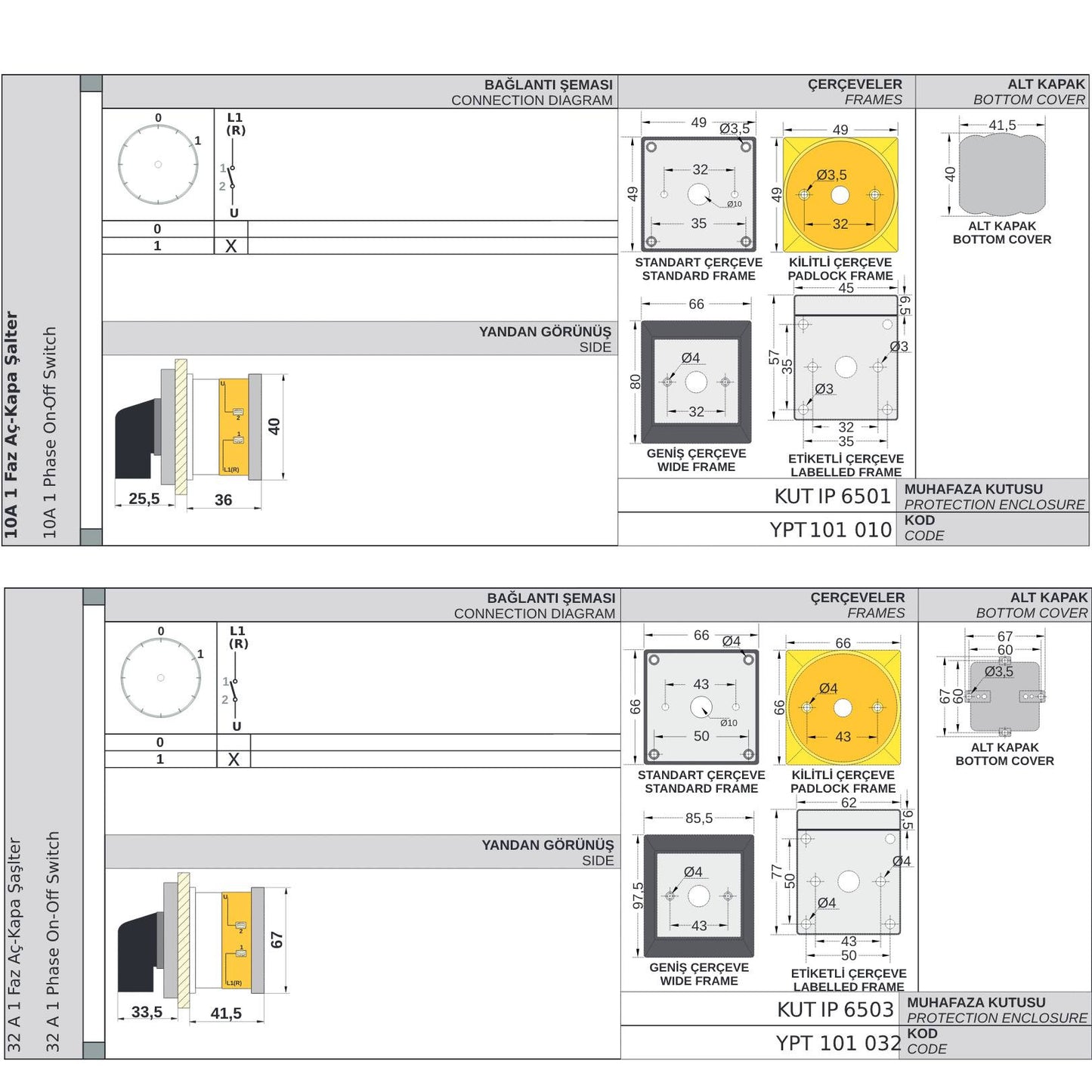

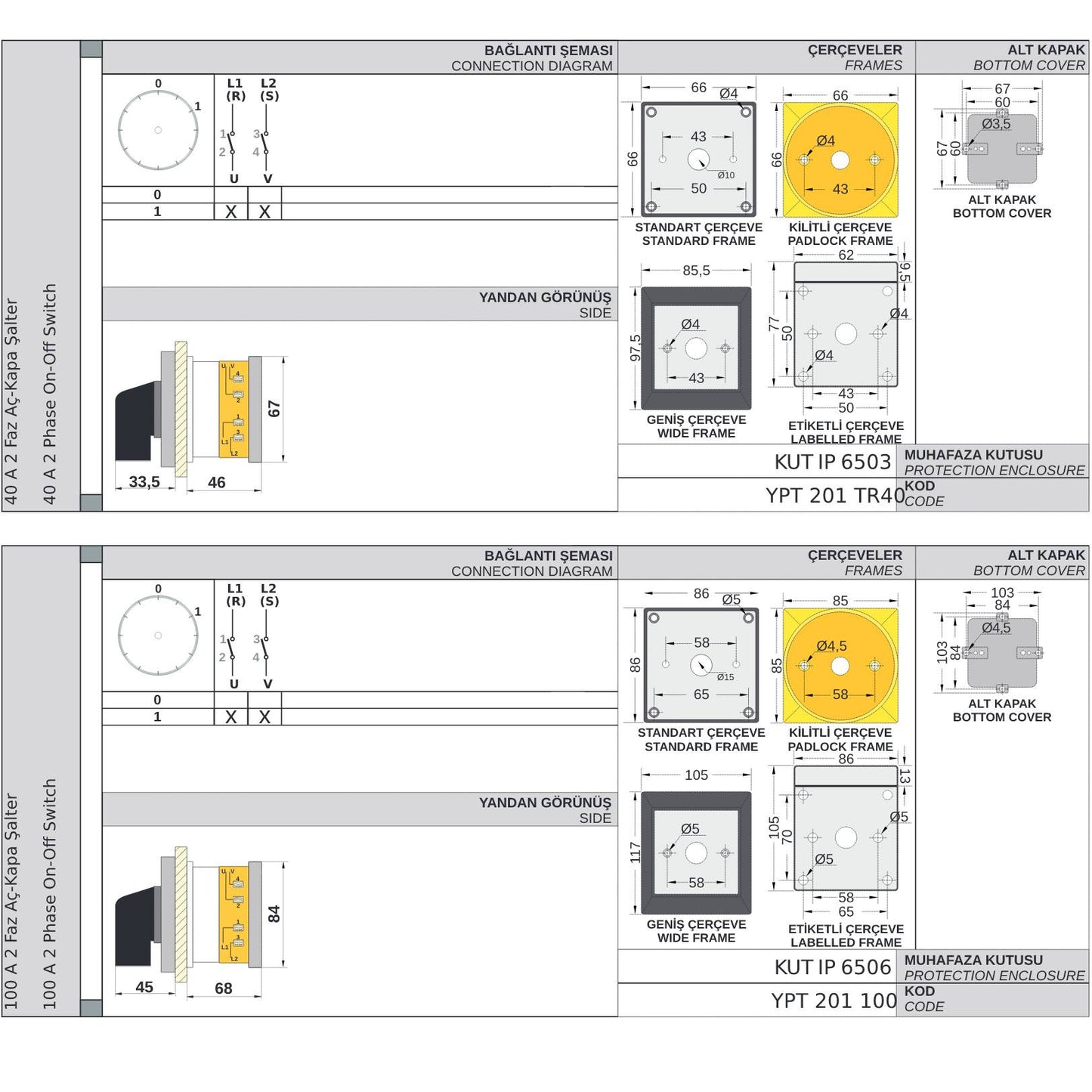

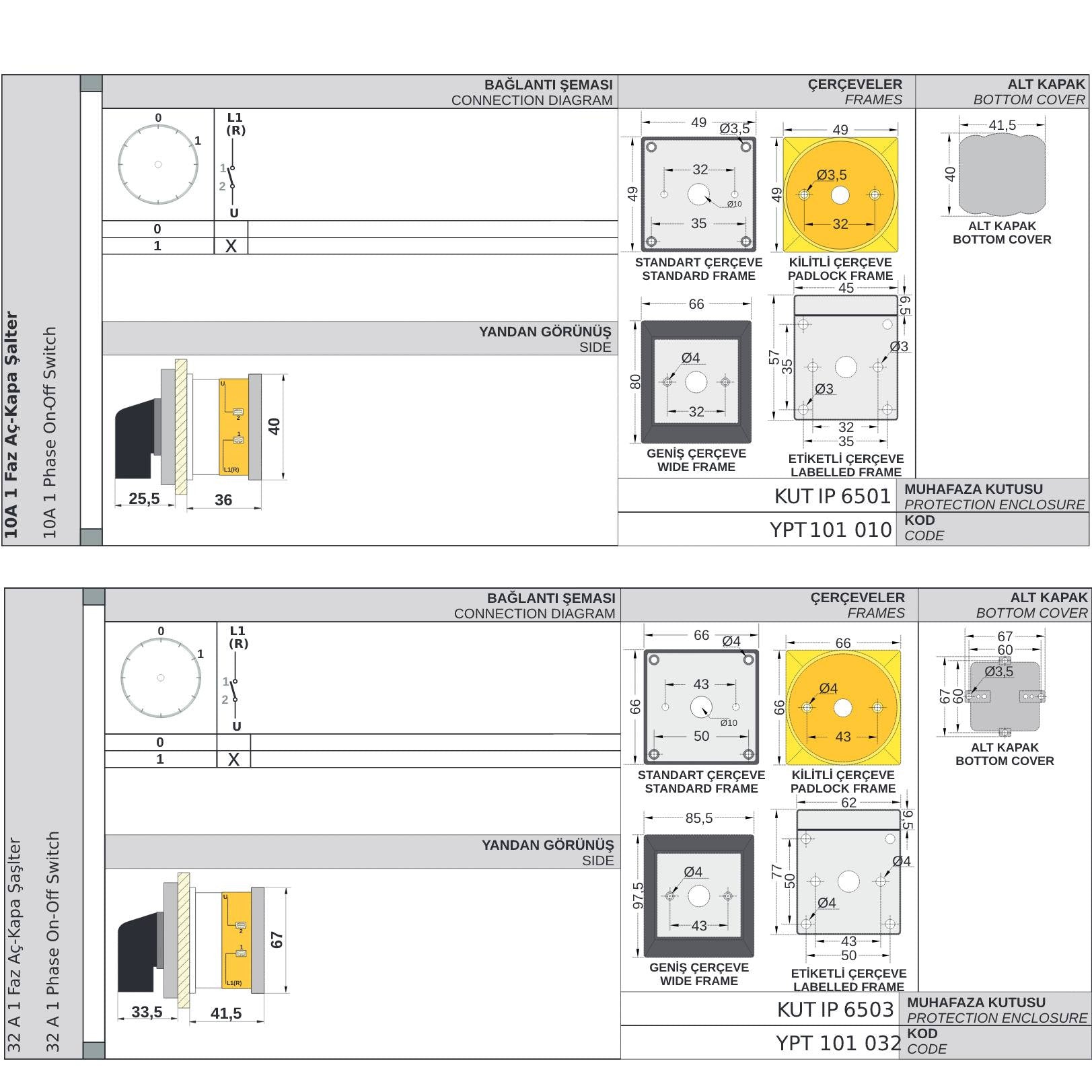

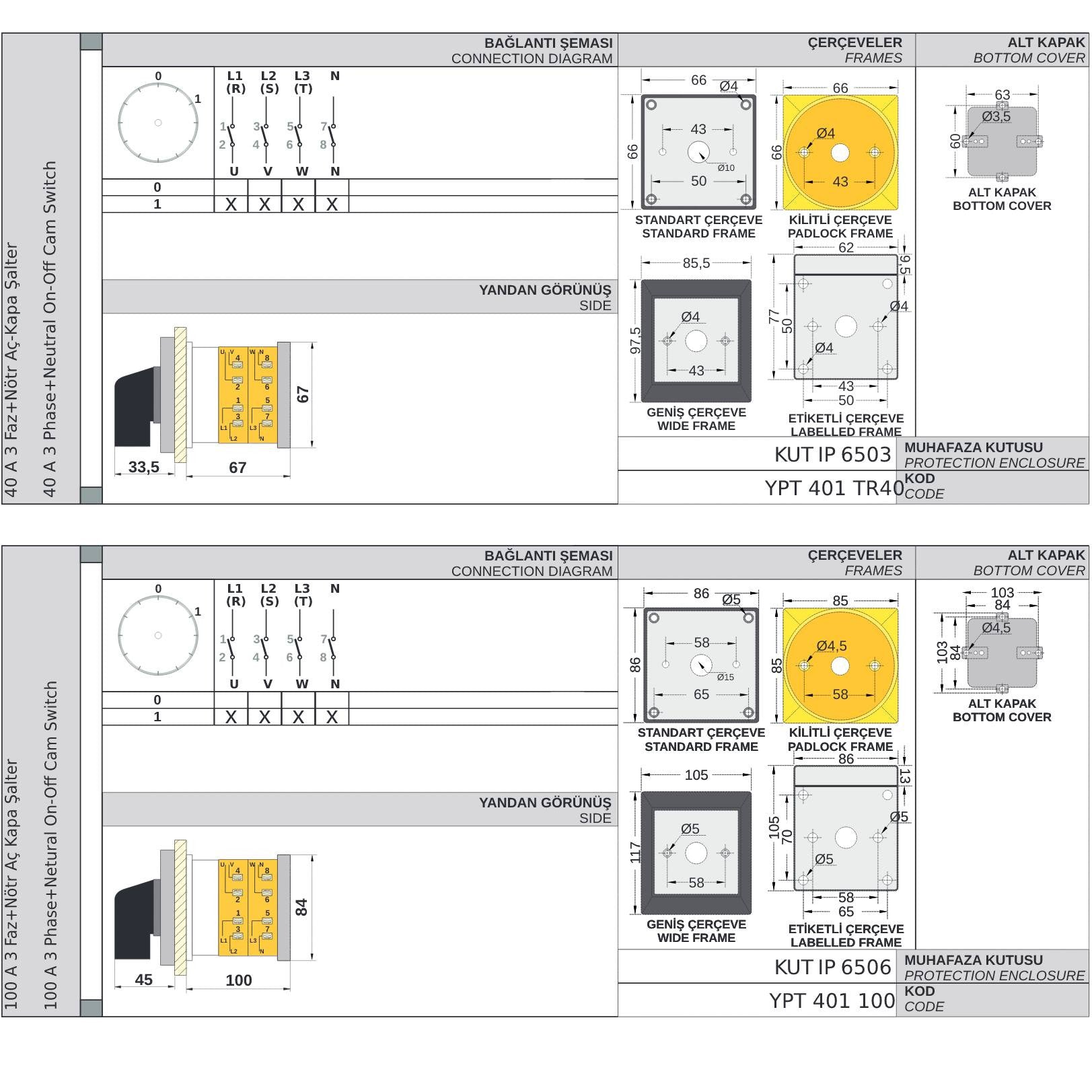

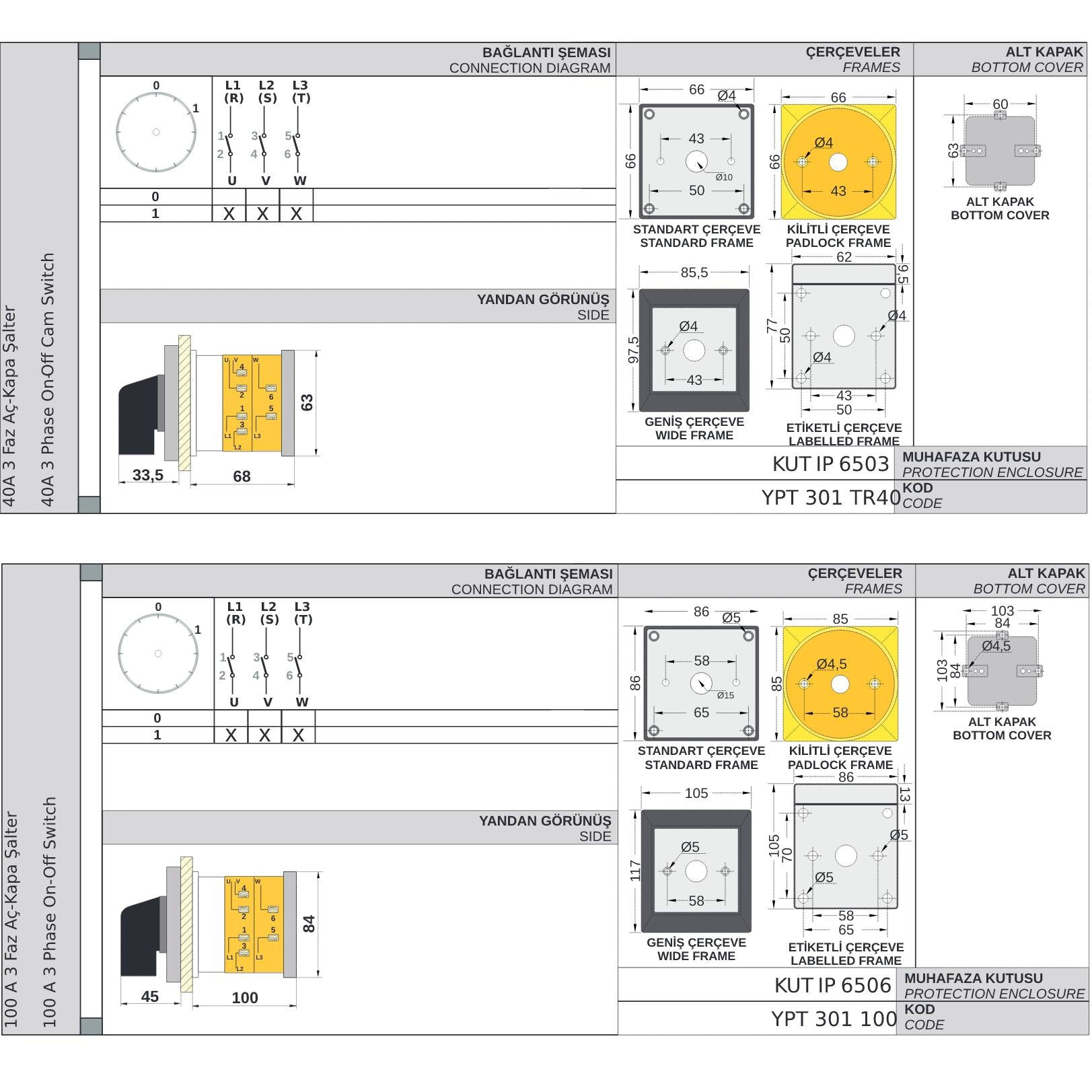

Manual

https://files.principalelektrik.org/SKU%20YKL101010%2C%20SKU%20YKL101032.jpg
