ONKA 2.5 mm2, 2-level spring rail connector DIN rail terminal block 4-wire, gray, 1020379
- Regular price
- 742 Ft
- Regular price
-
743 Ft - Sale price
- 742 Ft
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Guarantee

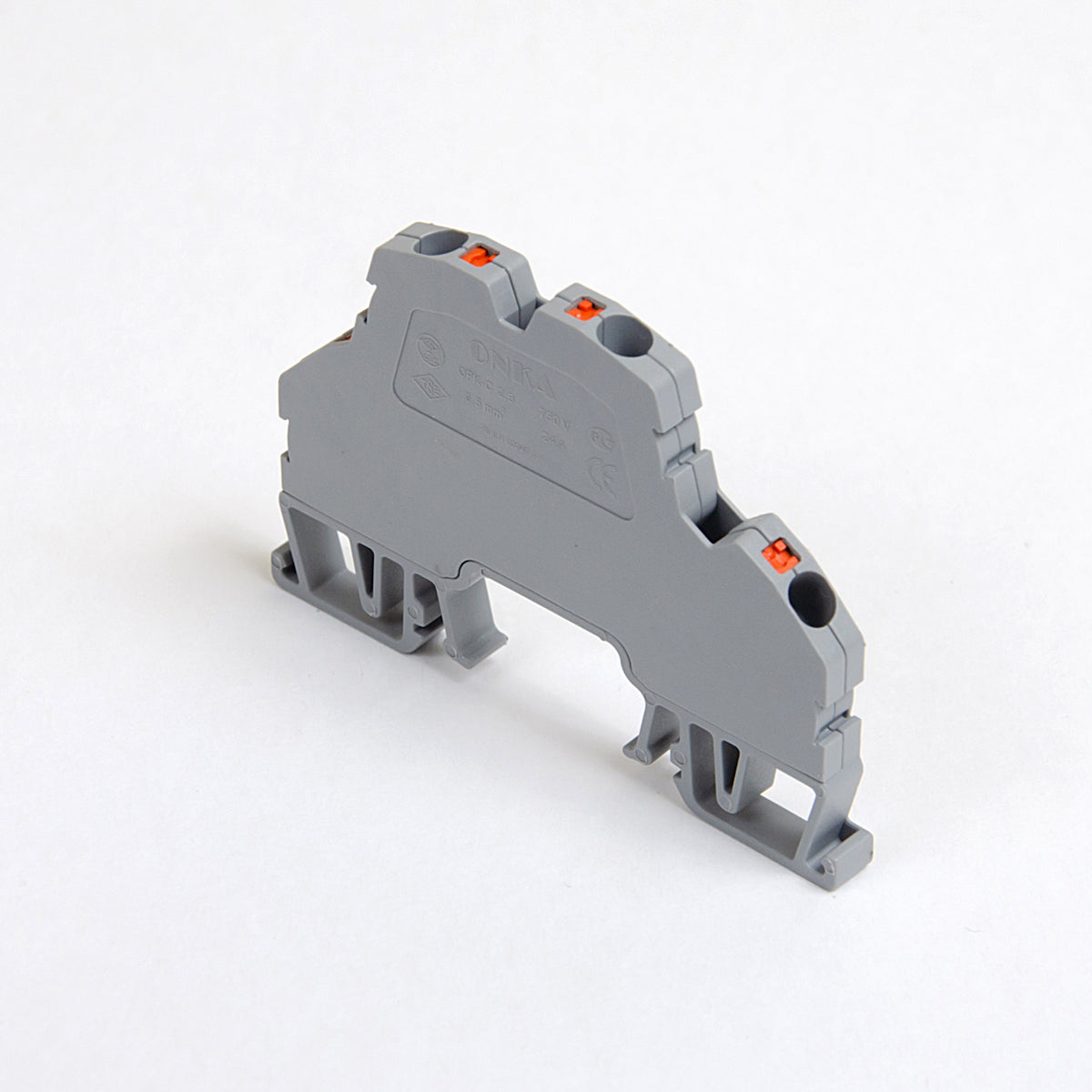

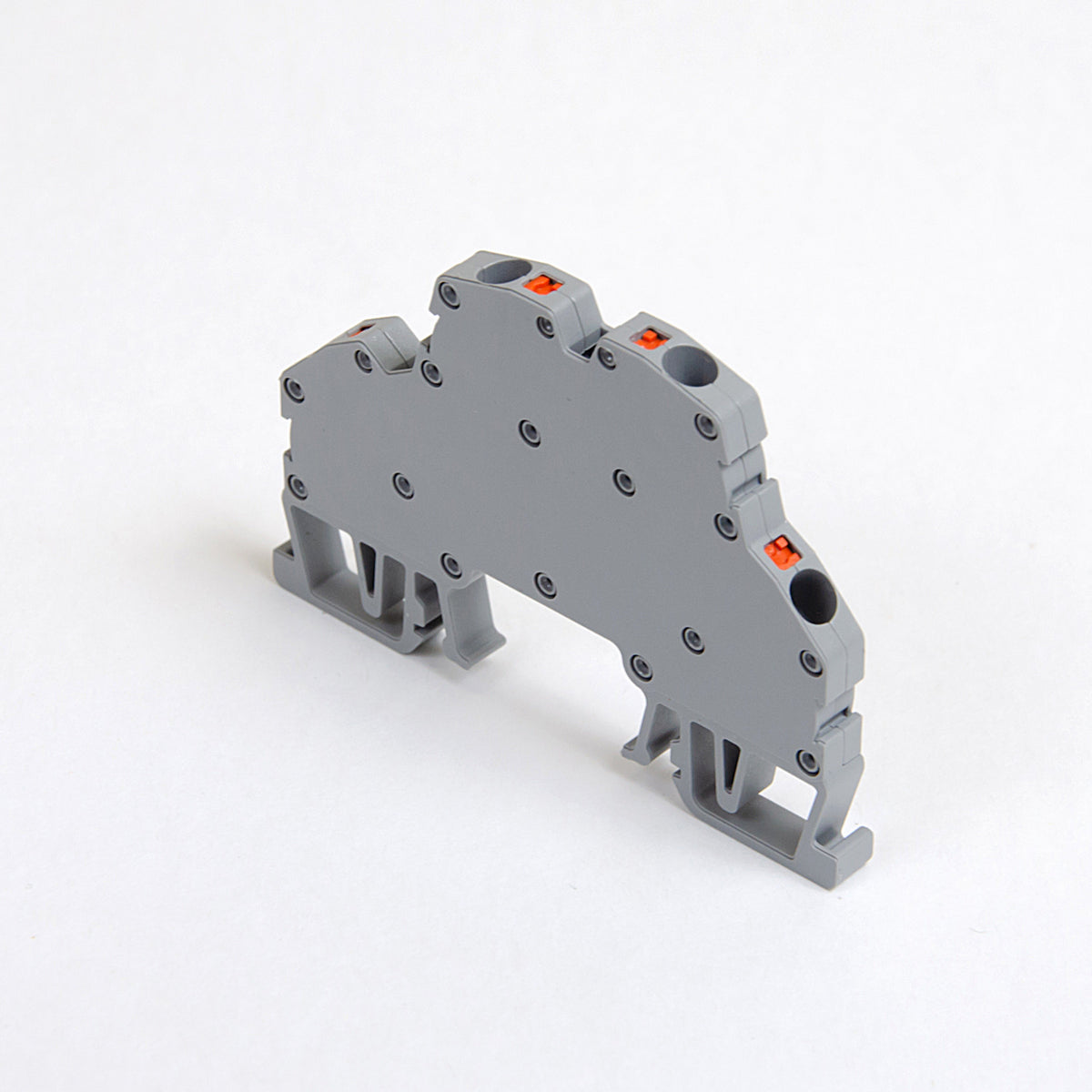

2-pole spring terminal connector / DIN rail connector 4-wire gray, ONKA, made in Turkey
The ONKA compact terminal connectors provide great opportunities for connecting any wires of different cross-sections. Thanks to the transparent housing, the correct arrangement of the wires can be easily checked. The original ONKA quick connectors ensure convenient installation and 100% connection reliability.
Technical parameters
The cross-section of the connected single wire is up to: 2.5 mm2
Color: gray
The main housing insulating material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: top / top
Cable strip length: 9mm
Type of electrical connection: spring clamp
Rated voltage: 750V
Rated current: 25A
Operating temperature range: -40°C
Operating temperature range: up to 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
