Vendor: TENSE

Hour meter with LCD display 24AC/DC 230VAC

Barcode: HM-48D
12.589 Ft
12.590 Ft
12.589 Ft
-0%
Low stock: 10 left
Update: Yes
Reset: Yes
  • Description
  • User manual
  • Payment methods
  • Guarantee

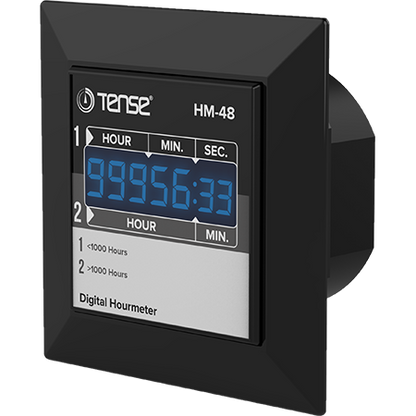

Digital hour meter - TENSE

Product description:
The digital operating hour meter is used to measure the operating time of any load that starts when the power supply is connected. The meter is suitable for industrial machines, equipment, switchgear and automation systems.

Technical data

  • Operating voltage: 160-240 V AC, 50/60 Hz

  • Alternative power supply: 24 V AC/DC

  • Power consumption: < 7 VA

  • Operating temperature: -20 °C ... +55 °C

  • Time range: 0 seconds to 99.999 hours 59 minutes

  • Display: 1×7 LEDs

  • Connection: connection plate

  • Mounting: in panel

  • Weight: < 60 g

  • Operating altitude: < 2000 m

  • Cable diameter: < 1.5 mm²

Operating principle

  1. Connect the counter according to the wiring diagram.

  2. When the power supply is connected, the counter automatically starts counting the operating time .

  3. Displaying the values:

    • Up to 1000 hours: format hours: minutes: seconds.

      • Example: 12345:30 → 123 hours, 45 minutes, 30 seconds.

    • Above 1000 hours: hours format: minutes

      • Example: 14530:45 → 14,530 hours, 45 minutes

The use of

  • Cumulative measurement of machine and equipment operating time

  • Monitoring the operation of motors, pumps, fans and automation lines

  • Maintenance planning and equipment life cycle tracking
