1 35
Vendor: OPAS

Switch group 0-1-2-3 step switch with cam switch

Barcode: YPT113KM25
8.732 Ft
8.732 Ft
8.732 Ft
14 in stock
Number of columns: 1 pole
Mark: 25A
  • Description
  • User manual
  • Payment methods
  • Guarantee

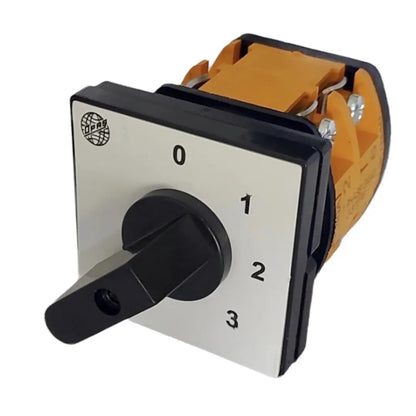

Cam packet switch 0-1-2-3 | OPAS (Turkey)

Product description

The cam pack switch is used for manual control of low-voltage electrical circuits. It is used in main and control circuits, to turn on and off electric motors or other low-power equipment.
OPAS switches are characterized by compact design, high electrical and mechanical resistance and reliable operation.

The 0-1-2-3 multi-position circuit model allows the device to switch between multiple operating modes, such as different power, speed or temperature levels.

Application example

The switch is suitable for controlling, for example, three heaters of 1 kW each in sequence , where it allows you to adjust the power:

  • 1 kW ,

  • 2 kW ,

  • 3 kW .

Technical characteristics

  • Design: The switch has the following features.

  • Device type.

  • Switching scheme: 0 - 1 - 2 - 3

  • Number of poles: 1

  • Mounting type: Built-in

  • Number of phases: single-phase

  • Stop (block): No

  • Degree of protection: IP20

  • Operating temperature: -30 to +55 °C

Available current variants

  • 10 A

  • 16 A

  • 25 A

  • 32 A

  • 40 A

  • 63 A
