Vendor: TENSE

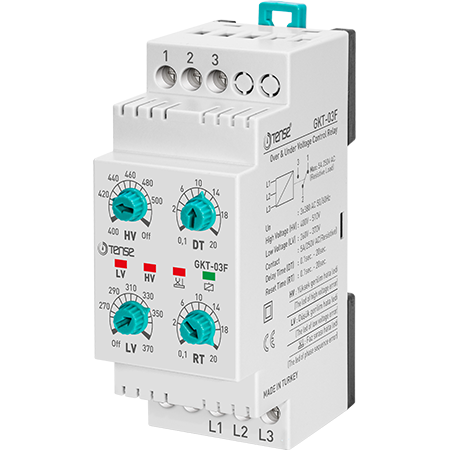

Three-phase monitoring/protection relay for overvoltage, undervoltage, sequence/error checking

Barcode: GKT-03F
19.272 Ft
19.272 Ft
19.272 Ft
Low stock: 7 left
Sled phase: Yes
  • Description
  • User manual
  • Payment methods
  • Guarantee

3-phase relay for voltage monitoring 5A, 260-410V AC, neutral wireless monitoring, phase sequence monitoring, Tense

Three-phase voltage monitoring relay with undervoltage and overvoltage monitoring, time delay and automatic reset.

The main features of the new relays are as follows:

- Monitoring of voltage exceeding the set value in at least one phase (HV), setting range 400V-510V for GKT-03 and GKT-03F;

- Monitoring of voltage below the set value in at least one phase (low voltage), setting range: 260V-370V for GKT-03 and GKT-03F;

- Setting the reaction time for voltage deviations from the set value (DT), range 0.1 s-20 s;

- Setting the return time of the relay contact after the voltage returns to the set values ​​(RT).

- Automatic reconnection, range 0.1 s - 20 s;

- Monitoring the sequence of phases/presence of phases in the network (GKM-02F and GKT-03F);

- Monitoring of the supply voltage and tripping of the relay if the supply voltage drops below 152 V (GKT-03 and GKT-03F);

- 3% hysteresis of the set voltage level for the relay to return to operating state;

- LED indicators to indicate relay status and possible emergency situations;

- Control (NO+NC) with 5 amp dry contact switching;

- Compact size, DIN rail mountable.
mso-ascii-theme-font:minor-latin;mso-fareast-font-family:Aptos;mso-fareast-theme-font: minor-latin;mso-hansi-theme-font:minor-latin;mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi;mso-ansi-language:CS;mso-fareast-language:EN-US; mso-bidi-language:AR-SA">Please note that these relays are only intended to disconnect loads/devices/electrical appliances from the mains in the event of overvoltage and neutral/phase failure. These devices do not regulate voltage!
