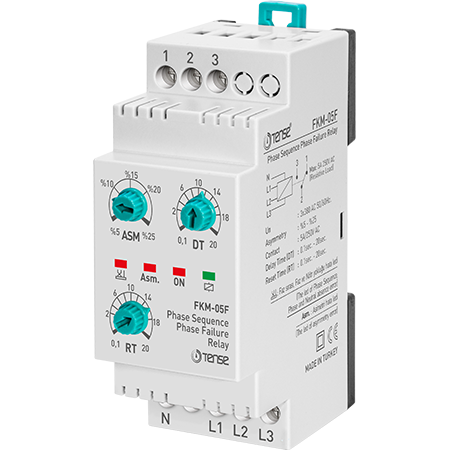

Three-phase monitoring/protective relay monitors phase/asymmetry/voltage fault

Barcode: FKM-05F

Regular price: 12.250 Ft
Regular price: ~~12.251 Ft~~
Sale price: 12.250 Ft
Unit price: per

42 in stock

Sled phase: Yes Yes Not

Product variants

Description
User manual
Payment methods
Guarantee

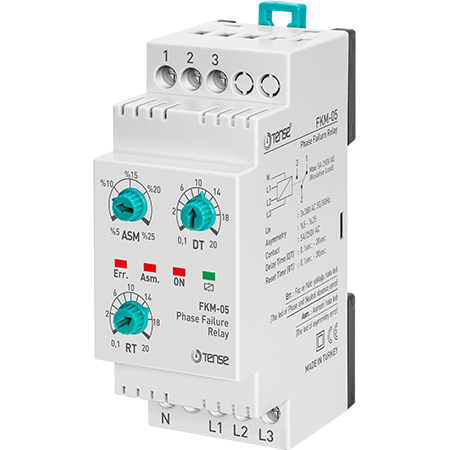

Three-phase monitoring/protection relay for sequence control, tripping, phase asymmetry, overvoltage, undervoltage, neutral wire tripping with timer. Protection monitoring relay FKM-05/05F (TENSE)

Phase protection relays are used to protect three-phase loads from damage caused by mains voltage.

Overvoltage: 300 V (fixed)
Undervoltage: 140 V (fixed)
Asymmetry: 5% - 25% (adjustable)
Timer: 0.1 s - 20 s (adjustable)
Phase loss protection
Neutral phase failure protection
Phase sequence control (FKM-05F)
DIN rail mountable

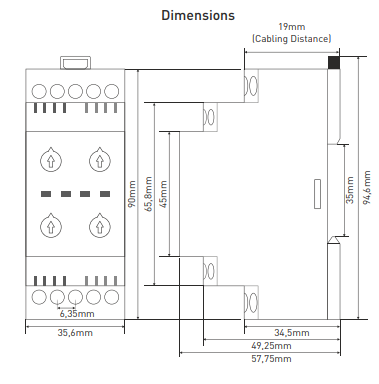

Width 35.6 mm

Manual

https://files.principalelektrik.org/FKM-05-05F%20-%20FKT-06-06F%28SKU%20FKT-06F%2C%20SKU%20FKT-06%2C%20SKU%20FKM-05F%2CSKU%20FKM-05%20%29.pdf
