Vendor: TENSE

Frequency counter / frequency counter / frequency meter panel digital built-in 1-400Hz

Barcode: DJ-F72
15.414 Ft
15.414 Ft
15.414 Ft
Low stock: 4 left

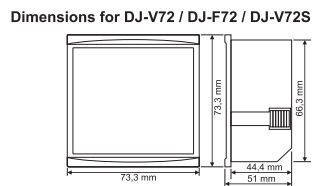

Height x width: 73mm x 73mm
  • Description
  • User manual
  • Payment methods
  • Guarantee

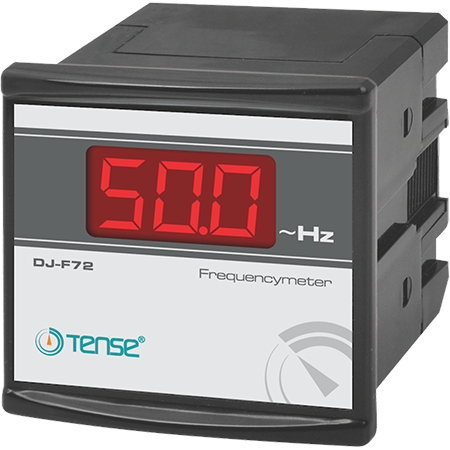

Digital frequency meter TENSE DJ-F72

Description

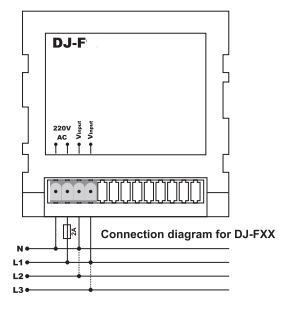

TENSE DJ-F72 digital frequency meters are designed for continuous monitoring of alternating current (AC) frequency . When the device is powered up, it displays the frequency of the phase or mains voltage connected to the Vin inputs on the digital display. The measured voltage should be in the range of 15-500 VAC .

Advantages

  • Continuous frequency monitoring

  • Precise digital measurement with ±1% accuracy

  • Easy front panel installation

  • Low power consumption (<6 VA)

  • Compact and reliable operation up to 2000 m altitude

Technical specifications

Parameter Value
Operating voltage (Un) 140 - 260V AC
Operating frequency 50/60Hz
Power consumption <6 VA
Frequency measurement range 1 - 400 Hz (voltage 15-500 V AC)
Measurement accuracy ±1%
Operating temperature 0°C - 55°C
Protection class IP20
Connection type Mooring connection
Max.
Cable diameter 1.5 mm²
Weight <220g
Operating height <2000m

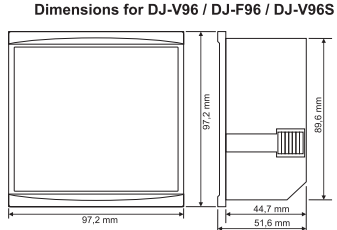

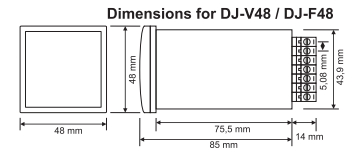

ModelDisplay sizeInstallation opening
sizeDJ-F9620
mm, 3 digits91 x91
mmDJ-F7214
mm, 3 digits68 x68
mmDJ-F489
mm, 3 digits45 x 45 mm


Installation

  • Front panel mounting

  • Suitable for industrial and domestic power supply systems

Download the

User manual
