Vendor: OPAS

Switch with knob / Rotary switch L-0-P, 3-pole

Barcode: IPT304TR63
15.333 Ft
15.333 Ft
Low stock: 3 left
Number of columns: 3 poles
Mark: 63A
  • Description
  • Payment methods
  • Guarantee

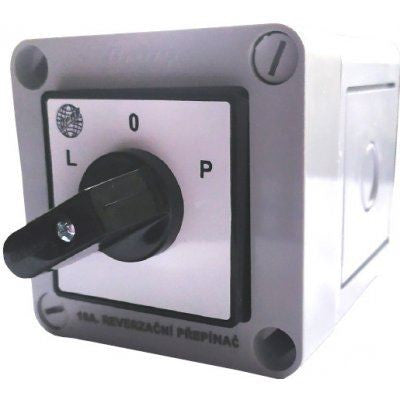

Reverse cam switch L-0-P, 3-pole, 25 A and 63 A, in plastic box

Model: YKT304 / IPT304
Manufacturer: YKT304 / IPT304 .

The reversing cam rotary switch is used to reverse the direction of rotation of three-phase electric motors. The device allows safe switching between clockwise (P) and anti-clockwise (L) rotation of the motor, with the possibility of a quick stop in the "0" position.

The switch is housed in a durable plastic housing to ensure safe operation even in harsh environments. It is characterized by high electrical and mechanical resistance, which guarantees a long service life even under intensive use.

Technical characteristics

  • Design type: cam rotary switch

  • Number of poles: 3

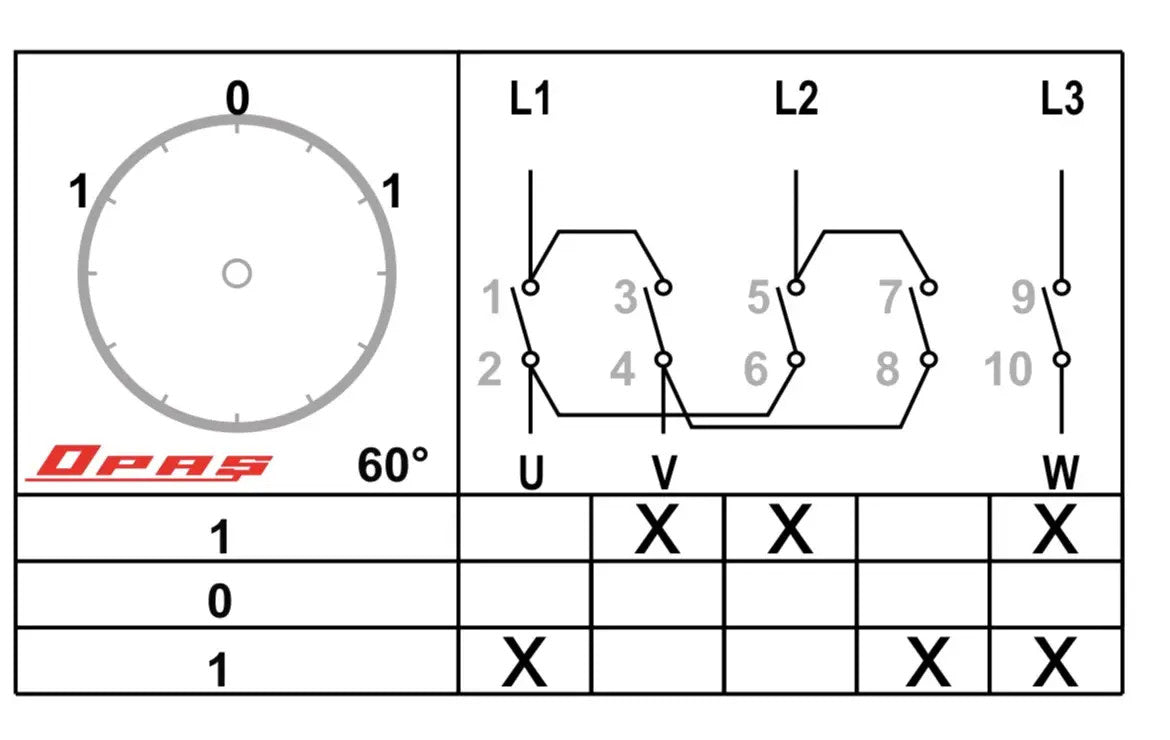

  • Wiring diagram: L - 0 - P

  • Storage: in a plastic box

  • Purpose: reversing the direction of rotation of three-phase electric motors.

  • High mechanical and electrical strength

Electrical parameters according to design

Rated current Ui (V) Ith (A) AC-23 at 400 V (kW)
10 A 450 16 3
16 A 500 20 5
25 A 660 25 8
32A / 40A 660 32/40 17
63 A 660 63 21
100A 660 100 3
