Vendor: TENSE

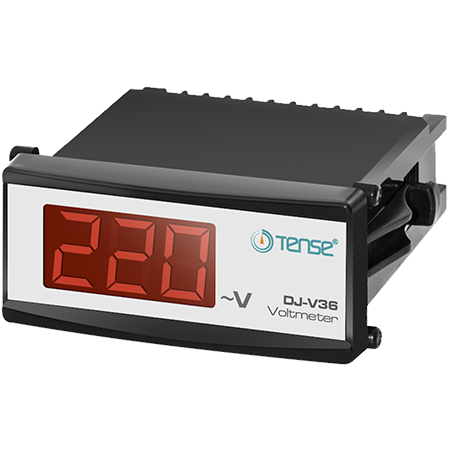

DJ-V - built-in digital panel voltage meter for 1-500 V AC voltage, for panel meters

Barcode: DJ-V36
12.590 Ft
12.590 Ft
12.590 Ft
Low stock: 2 left
Height x width: 36mm x 78mm
  • Description
  • User manual
  • Payment methods
  • Guarantee

Single-phase digital voltage meter TENSE DJ

Description

The TENSE DJ series digital voltage meters are designed to monitor continuous alternating voltage in single-phase and three-phase electrical systems. They provide high accuracy and reliability, making them ideal for use in electrical switchboards and control panels.

The device displays the voltage in phase or between phase and zero, allowing continuous monitoring and prevention of system faults.

Advantages of the TENSE DJ series

  • Wide measurement range: 1 V - 500 V, suitable for various systems.

  • High accuracy: ±1% measurement error

  • Bright LED displays:

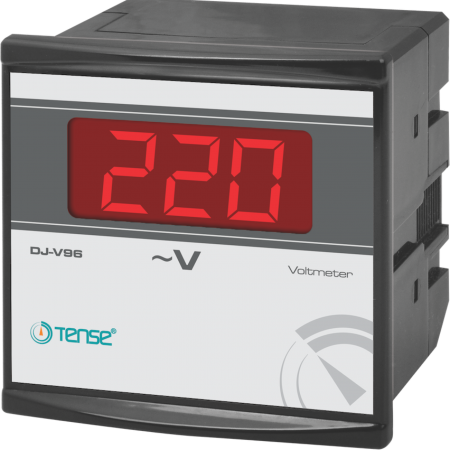

    • DJ-V96: 20 mm, 3-digit display

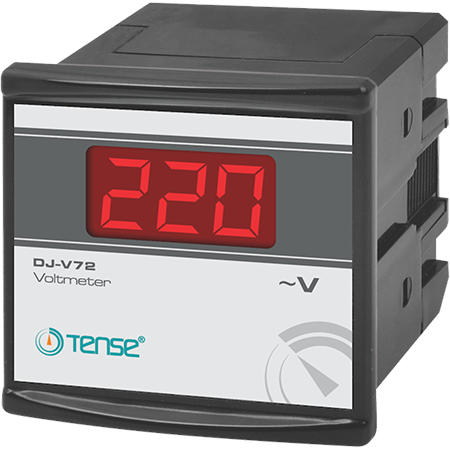

    • DJ-V72: 14 mm, 3-digit display

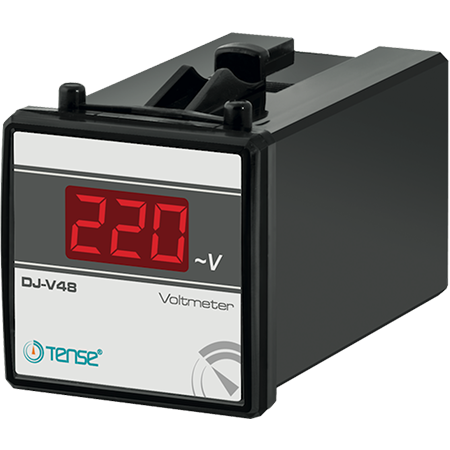

    • DJ-V48: 9 mm, 3-digit display

  • Low power consumption: <6 VA

  • Easy connection: standard screw terminals for wires up to 1.5 mm²

  • Reliable operation: 0 °C - +55 °C operating temperature, IP20 protection, up to 2000 m altitude.

Technical specifications

Parameters Value
Operating voltage (Un) 140 - 260V AC
Operating frequency 50/60Hz
Measurement voltage range 1 - 500 V AC
Power consumption <6VA
Mounting type Front panel mounting
Protection class IP20
Operating temperature 0 °C ... +55 °C
Leaders up to 1.5 mm²

Available models

  • DJ-V96 - 20mm display

  • DJ-V72 - 14mm display

  • DJ-V48 - 9mm display
