Vendor: TENSE

Digital built-in panel ammeter for measuring alternating current indirect current X/5

Barcode: DJ-A36
12.590 Ft
12.590 Ft
12.590 Ft
Low stock: 10 left
Height x width: 36mm x 78mm
  • Description
  • User manual
  • Payment methods
  • Guarantee

Digital current meter DJ-A36 for direct current measurement (TENSE)

10-910 A DC range - Measurement via 60 mV shunt - 230 V AC power supply

The DJ-A36 digital ammeter is designed for accurate DC current measurement using an external shunt resistor. The instrument can measure current over a wide range of 10 to 910 A using a standard shunt with a voltage drop of 60 mV .

The measurement is done indirectly - the ammeter calculates the current value based on the voltage drop measured across the connected shunt. The shunt is not included and must be ordered separately according to the desired measurement range.

Main features

  • DC current measurement 10 A - 910 A

  • Operates with external 60 mV shunt

  • Measurable input range: 0.3 ... 70 mV

  • Power supply directly from 230 VAC mains (150-270 V)

  • Bright 3-digit LED display (digit height 9 mm)

  • Simple shunt value setting (shunt)

  • Protection against incorrect polarity - shows "0" in case of reverse polarity

  • Small footprint and easy panel installation

Use the address.

The current meter is used in DC power systems, charging stations, industrial equipment, galvanic operations, traction systems and wherever accurate detection of high-value DC current is required.

It is recommended to install a circuit breaker to protect the instrument's power supply.

Setup and operation description

  1. To enter the menu:
    Press and hold the SET button for 1 second.

  2. Entering the shunt value (shunt):
    Use the arrow keys to set the shunt current value in amperes (e.g. 100 A, 300 A, 600 A).

  3. Confirmation:
    Press the SET button again and the meter will start displaying the current DC measurement.

  4. Wrong polarity / circuit break:
    The display shows "0" .

Caution: Never exceed 70 mV shunt voltage - the device may be damaged.

Technical data

Parameter Value
Model DJ-A36
Measurement type Direct current
Measuring range 10-910 A (via 60 mV shunt)
Input voltage from shunt 0.3-70mV
Shunt type 60 mV (optional)
Power supply 230 VAC (150-270 V), 50/60 Hz
Power input < 6 VA
Display 3 digits, 9 mm high

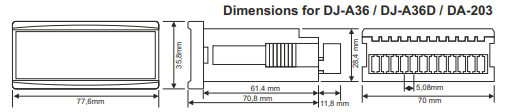

Device dimensions 78 × 36 × 75mm
Dimensions of the installation cutout 72 × 31 mm
Installation Panel mounted


Related accessories (recommended)

  • Shunt resistors (60 mV shunt resistors) in the range of 10-910 A

  • Circuit breakers for power protection

  • TENSE measuring and control equipment:

    • Handheld ammeters and voltage meters

    • Digital voltage meters

    • Frequency meters

    • Industrial multimeters
