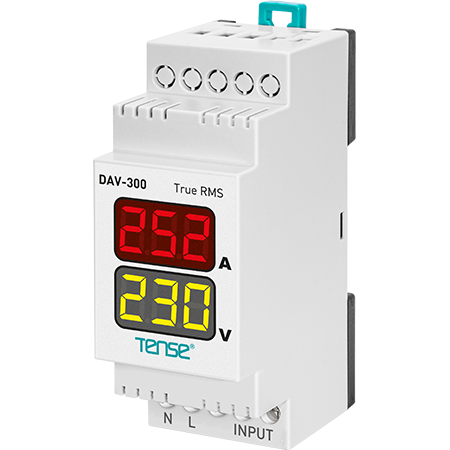

DAV-DIN digital current and voltage meter 150-260V panel meters
- Regular price
- 19.772 Ft
- Regular price
-
19.772 Ft - Sale price
- 19.772 Ft
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- User manual
- Payment methods
- Guarantee
|
Digital multimeter with transformer 120/5 (electronic multimeter, ammeter and voltmeter in one device), manufacturer: TENSE
Digital voltage and current meters are used to continuously monitor alternating current, load, and the corresponding phase voltage.
Use the 100 A current transformer supplied with the instrument. Connect the current transformer leads to the instrument input terminals. The instrument values are set based on the current transformer. Therefore, do not combine current transformers of different makes and types. When the instrument is energized, the display shows the load supply voltage and the current drawn by the phase neutral wire connected to terminals A1 and A2.
The instrument displays 150-260 V AC voltage and 1-100 A AC current.
Vmeter range: Voltage 150 VAC - 260 VAC Current 1A - 100A
Technical characteristics:
Operating voltage (Un): 140 V - 270 V Operating frequency: 50/60 Hz Operating pressure: <6 VA Dimming accuracy: ±%1(V), ±%3(A) Operating temperature: -20 °C .... +55 °C Connection type: clamps Display: 2 x 3 digits 9 mm Weight: 220g Mounting: DIN rail mountable Cable diameter: 2.5 mm²
|
mso-ascii-theme-font:minor-latin;mso-fareast-font-family:Aptos;mso-fareast-theme-font: minor-latin;mso-hansi-theme-font:minor-latin;mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi;mso-ansi-language:CS;mso-fareast-language:EN-US; mso-bidi-language:AR-SA">In addition to digital devices, we can also use digital devices - voltmeters, ammeters
