Vendor: TENSE

DA-DIN Digital ammeter for AC 100 or 250 amps

Barcode: DA-120
16.189 Ft
16.189 Ft
16.189 Ft
-0%
Low stock: 7 left
Mark: 100A
  • Description
  • User manual
  • Payment methods
  • Guarantee

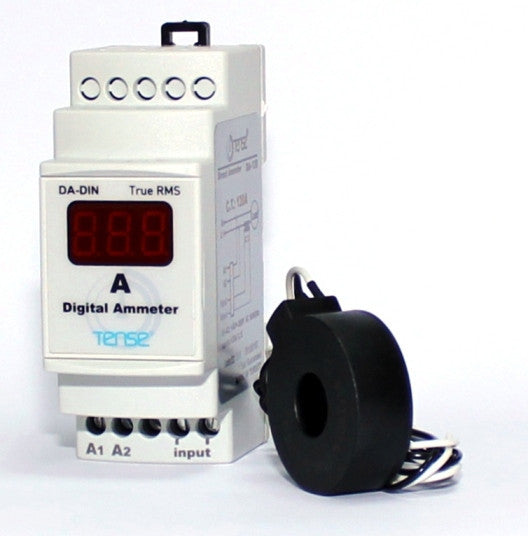

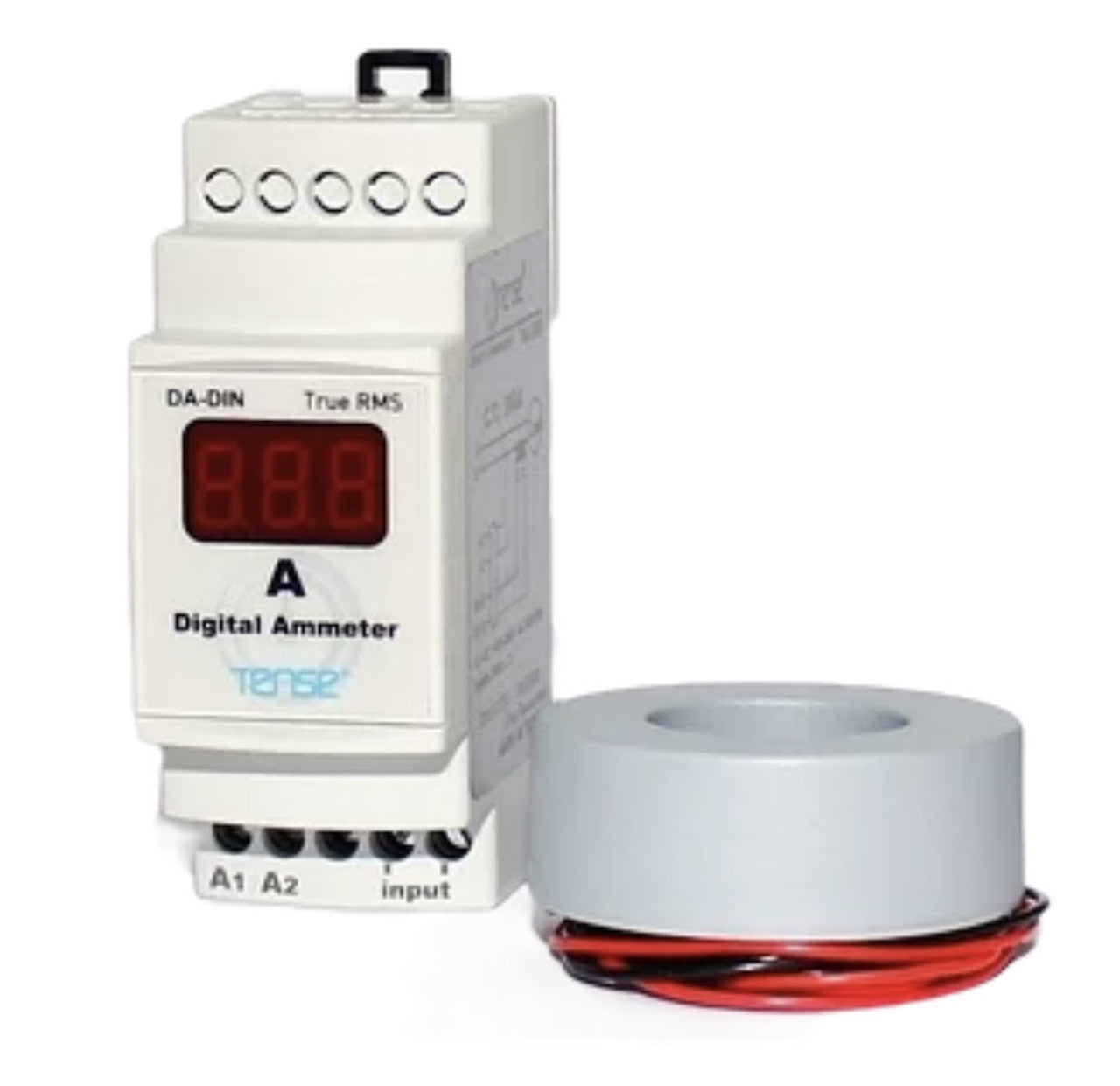

Single-phase current meter with 120/5 current transformer, high accuracy True RMS value, DIN rail mountable, range up to 120 A, energized measurement range up to 120 A, 3-digit display, 50/60 Hz operating frequency range DA-120, for use with the CT-120 current transformer supplied with the instrument. Connect the current transformer leads to the instrument input terminals. The instrument values ​​are set based on the current transformer. Therefore, do not combine current transformers of different makes and types. When the instrument is energized, the display shows the current drawn by the load.

Download the

User manual
