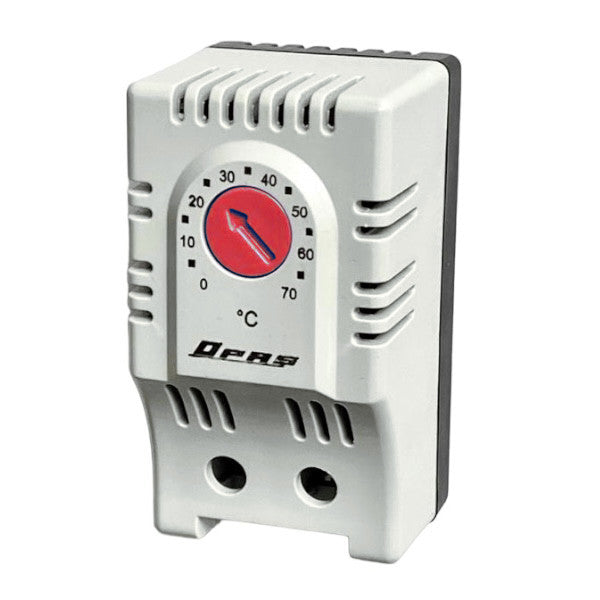

NC bimetallic thermostat / temperature switch, 0-60°C, DIN rail mountable.bimetallic from OPAŞ
Simple thermostat. 220(250) V AC. Bimetallic sensor type, with heating function. Electrical connection with 2 pcs 2.5 mm2 connectors. Mounting method 35 mm DIN rail, cross rail, mounting plate.

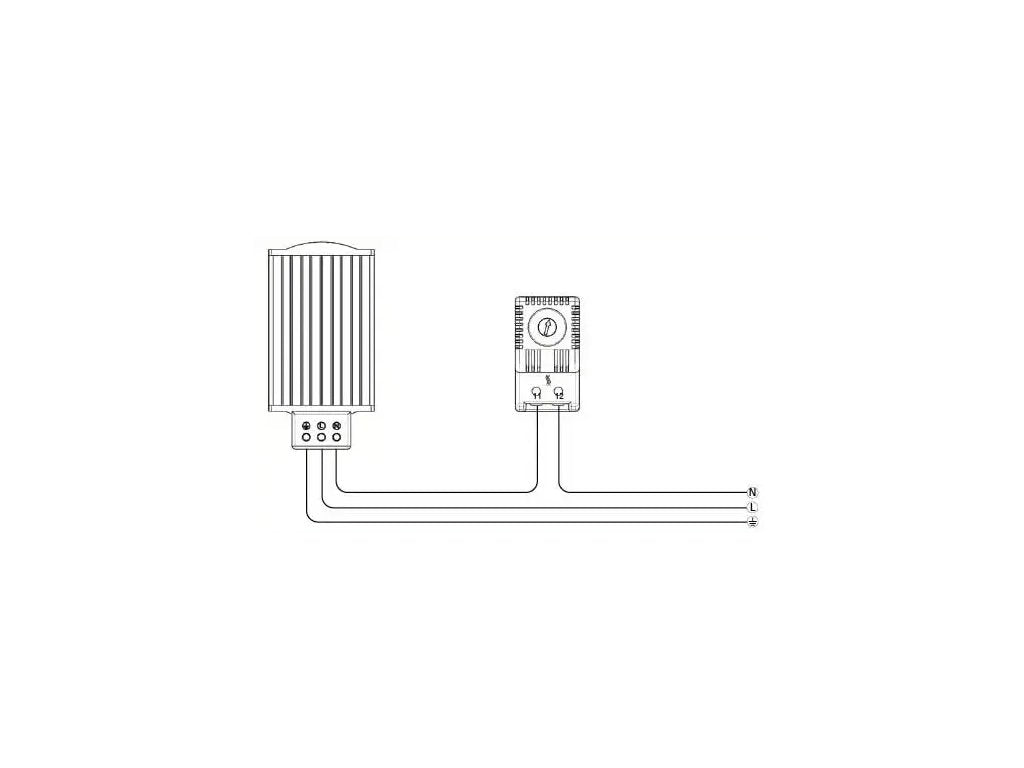

J is used to connect heating elements - heating elements, panel heaters, underfloor heating, heating cables, heating fans.
Features |
PTOT001 |
Contact type |
NC |
Setting range |
0-60°C |
Potentiometer color |
Red |
250V AC / 120V AC |
10 (2) The |
Sensor type |
Bimetal |
Contact type |
Snap Action |
Life |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic material |
UL94 V0 ABS flame retardant |
Protection level |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 / +80 °C |
Installation |
DIN rail 35 mm |
Dimensions LxWxD |
61x34x38 mm |
Weight |
43g |
