Bimetallic cooling thermostat NO switching, 0-60°C range - temperature switch

In stock - 80 items available
SKU: PTOT100
Common price 3.938 Ft including VAT

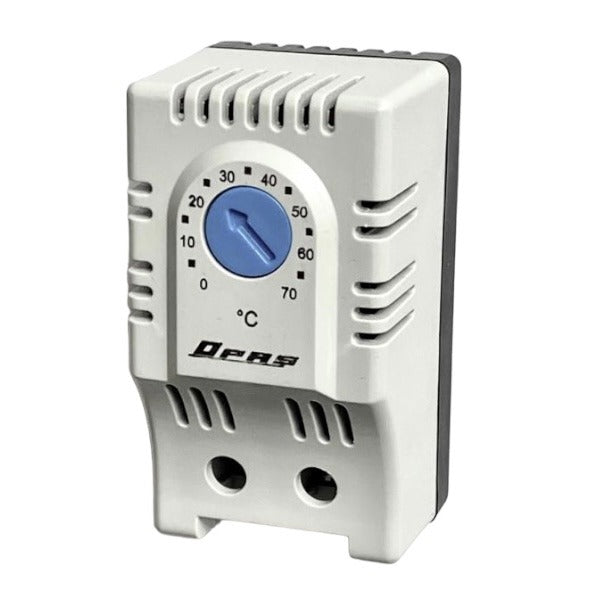

Bimetallic cooling thermostat / temperature switch NO, switch, 0-60°C, bimetallic from OPAŞ

Cabinet thermostat (temperature relay, temperature sensor, thermal sensor relay, air temperature control relay) with mechanical built-in air temperature sensor for DIN rail mounting for fan connection or signaling when the temperature rises above the set level, normally open contact (NO contact) PTOT100, 2p, screw terminal, bimetallic thermostats from OPAŞ.

These thermostats are used in systems that maintain a set temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of electrical cabinets, ATMs, payment terminals and other equipment located outdoors or in uncooled rooms.

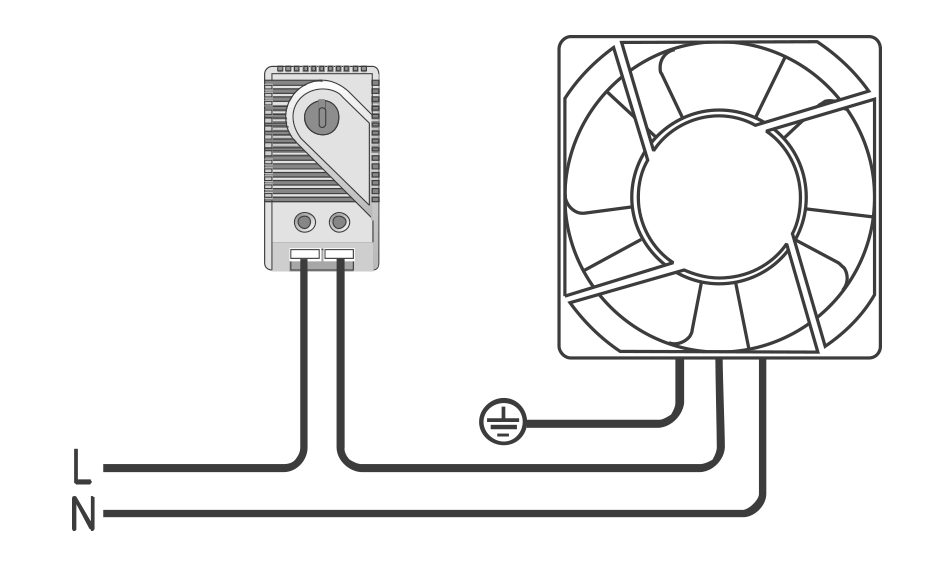

They are used to connect fans, coolers/air conditioners.

Features

PTOT100

Contact type

WOMAN

Setting range

0-60°C

Potentiometer color

Blue

250V AC / 120V AC

15 (2) The

Sensor type

Bimetal

Contact type

Snap Action

Life

> 100,000

Electrical connection

2-pole terminal, screw terminals

Plastic material

UL94 V0 ABS flame retardant

Protection level

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80 °C

Installation

DIN rail 35 mm

Dimensions LxWxD

61x34x38 mm

Weight

43g
