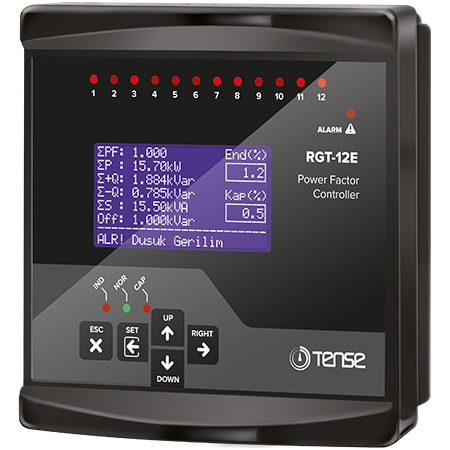

RGT-12E - 12-level reactive power regulator +TCR

12 steps + TCR power factor controller with 2.9" graphic LCD display (TENSE)

The RGT-12E reactive power regulator (TENSE ) is a fully automatic device for optimal switching of compensation stages.

Digital processing of the values ​​measured by the regulator ensures high accuracy in the evaluation of effective voltage, current and power factor.

The installation of the device is fully automatic - the controller itself determines the size of each connected compensation stage. These parameters can also be entered directly manually.

The controller switches the compensation stages on and off in such a way that the reactive power is controlled with a minimum number of switching operations. At the same time, the controller takes into account the even load of each stage and gives priority to switching those stages that have been without voltage for the longest time and have the least residual charge. During the control process, the compensation stages are continuously monitored in parallel - faults and changes in values ​​are detected, temporarily withdrawn stages are periodically tested and, if necessary, they are returned to the control process.

• Generator input and generator compensation

• Adjustable impact, discharge and decay time

• Single-phase, two-phase and three-phase capacitors and auxiliary reactors can be connected

• Harmonic voltage and current can be observed up to the 31st harmonic

• Total energy is traceable (import/export)

• The THD-V and THD-I values ​​of each phase can be observed.

• Create a performance analysis (20 samples 9999 minutes) - for capacitor selection
