TENSE

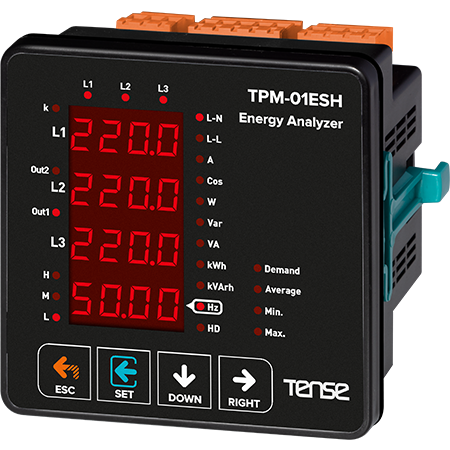

3-phase network parameter analyzer

In stock - 15 items available
SKU: TPM-01ESH
52.310 Ft including VAT

3-phase network analyzer / network analyzer / network parameter meter - Multifunctional digital panel meter, current, voltage, frequency and total power indicator, with two relay outputs and digital inputs, RS485 ModBus RTU - TPM-01ESH manufacturer TENSE (Turkey)

The multifunctional power network analyzer is used to accurately measure the parameters of three-phase networks.

Power analyzers are designed to measure and verify electrical values. The communication function allows energy measurements to be independently verified and reported.

Main advantages:

  • RS485 Modbus RTU (1200-38400bps)

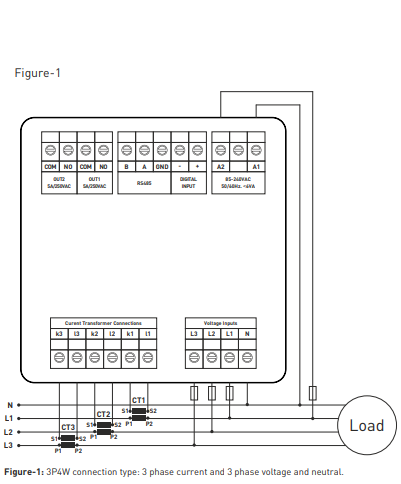

  • 3-phase voltage transformer and 3-phase current transformer.

  • Displays voltage and current harmonics up to the 31st harmonic.

  • Shows active power per phase (P)

  • Shows the reactive power (Q, inductive and capacitive) per phase.

  • Displays apparent power per phase (S)

  • Displays Cosφ and power factor values ​​of each phase

  • Displays the phase-to-neutral, phase-to-phase voltage (V) and current (I) values ​​of each phase, with measurement frequency.

  • Displays total active energy import and export values ​​(ΣkWh)

  • Displays the values ​​of total inductive and capacitive reactive energy (ΣkVArh)

  • Display of minimum and maximum values, max. requirement

  • 2 relay outputs, 1 digital input

  • Event logs (high/low voltage/current, voltage/current imbalance, THD-I)

  • The menu is password protected.

Typically, this network analyzer is used with current transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our online store. If you want to connect the analyzer to ModBus, we will send you a registration table with ModBus addresses upon request.
