TENSE

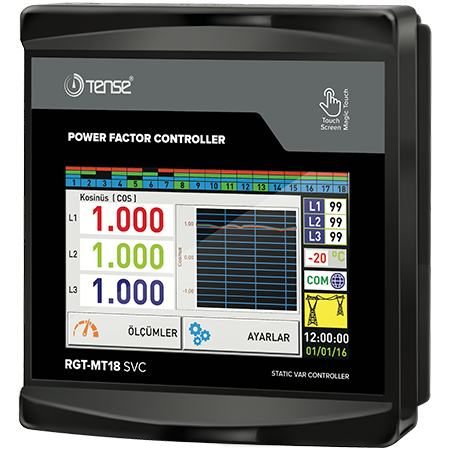

RGT-MT18 - 18-level +TCR reactive power controller with RS485 ModBus system

Only 1 left
SKU: RGT-MT18
134.801 Ft including VAT
150.388 Ft 134.801 Ft

18 steps + TCR Power factor controller for symmetrical/asymmetrical networks with 5 inch touchscreen and RS-485 (TENSE)

Reactive power control relays are used to reduce the reactive (inductive and capacitive) power taken from the network that is not used by the load. If inductive power is taken from the network, it intervenes by removing a capacitor of the appropriate value. If capacitive power is taken from the network, it intervenes by removing a shunt inductor of the appropriate value. In this way, it tries to reduce the inductive/active and capacitive/active rates of the system. It is designed to provide more reasonable compensation in unbalanced inductive and capacitive systems with the RGT-MT18 TCR step.

  • Generator input and generator compensation

  • Voltage, harmonic current/voltage, inductive and capacitive alarm output

  • Impact, discharge and ramp-down times can be set

  • Remote communication via RS485 (RS485 ModBus RTU)

  • Single-phase, two-phase and three-phase capacitors and shunt reactors can be connected

  • Harmonic voltage and current can be observed up to the 61st harmonic

  • Total energy (import/export) can be tracked

  • The THD-V and THD-I values ​​of each phase can be observed.

  • Create a performance analysis (20 samples 9999 minutes) - for capacitor selection

  • Temperature alarm output

  • Demand recording (active and reactive and apparent power and current demand)

  • Minimum, maximum and average current and voltage values ​​of each phase can be observed

  • Current date and time
