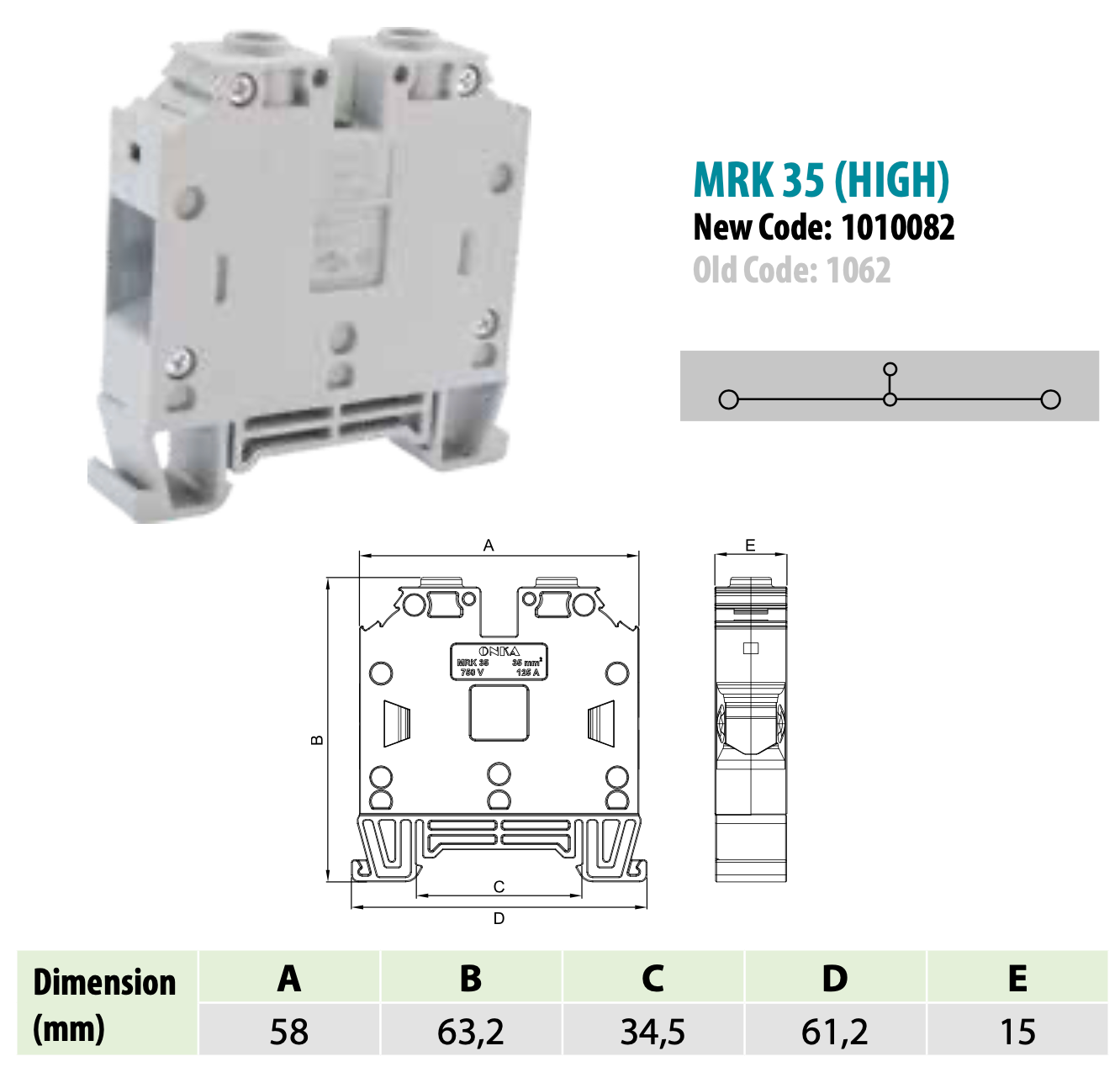

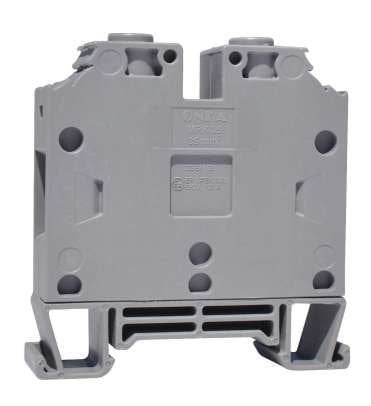

ONKA 35mm2 screw connector DIN rail connector 2-wire gray, 1010082

Terminal block / DIN rail connector 2-wire, gray, ONKA, made in Turkey

The ONKA compact terminal block connectors provide great opportunities for connecting any wires of different cross-sections. Thanks to the transparent housing, the correct arrangement of the wires can be easily checked. The original ONKA quick connectors ensure convenient installation and 100% connection reliability.

Technical parameters

The cross-section of the connected single wire is up to: 35mm2
Color: gray
The main housing insulating material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 2.0 Nm
Connection position: side / side
Cable strip length: 18 mm
Type of electrical connection: screw clamp
Rated voltage: 750V
Rated current: 125A
Operating temperature range: -40°C
Operating temperature range: up to 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
