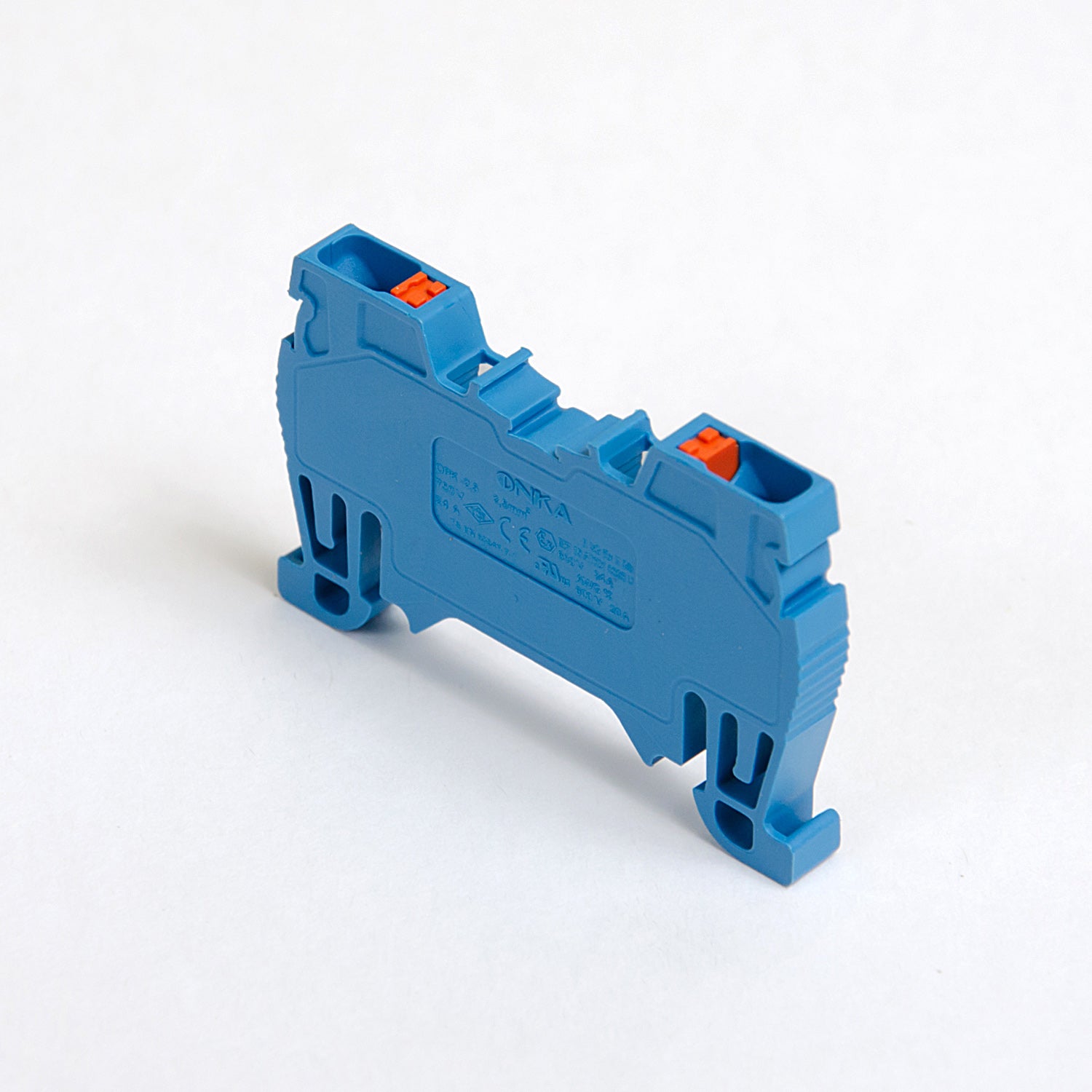

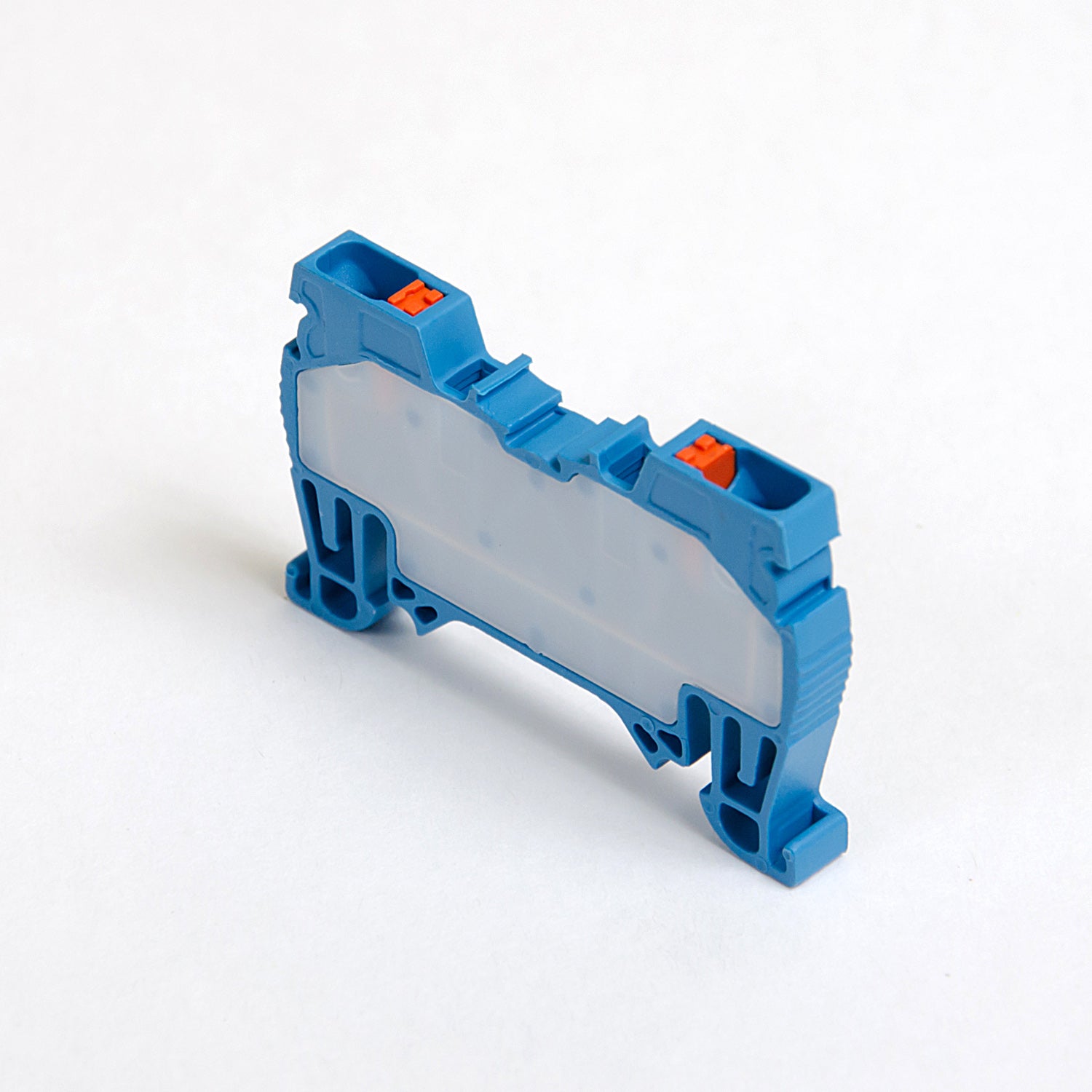

ONKA 2.5 mm2 spring rail connector DIN rail connector 2-wire gray, 1020016

Spring terminal connector / DIN rail connector 2-wire, retractable contact, blue, ONKA, Turkish manufactured.

The ONKA connector/terminal is a reliable solution for those looking for functional and durable components in electrical equipment.
The connector made of high-quality materials guarantees long-term use and resistance to mechanical damage.

Technical parameters

The cross-section of the connected single wire is up to: 2.5 mm2
Color: blue
The main housing insulating material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 9 mm
Type of electrical connection: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 24A
Operating temperature range: -40°C
Operating temperature range: up to 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
