ONKA 16mm2 PE screw terminal connector DIN rail connector 2-wire gray, 1010532

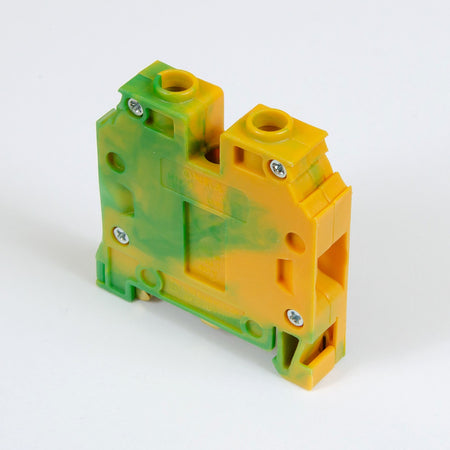

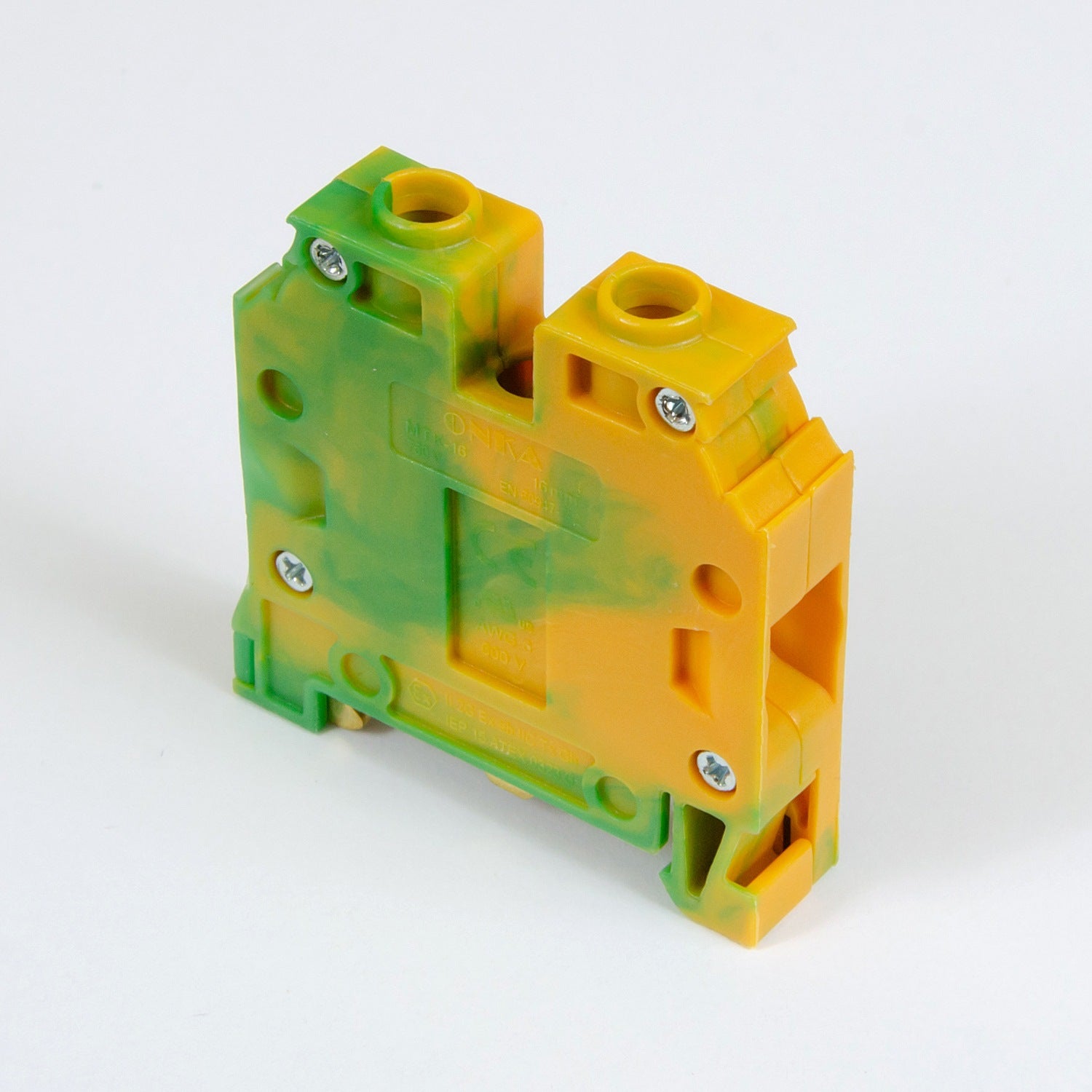

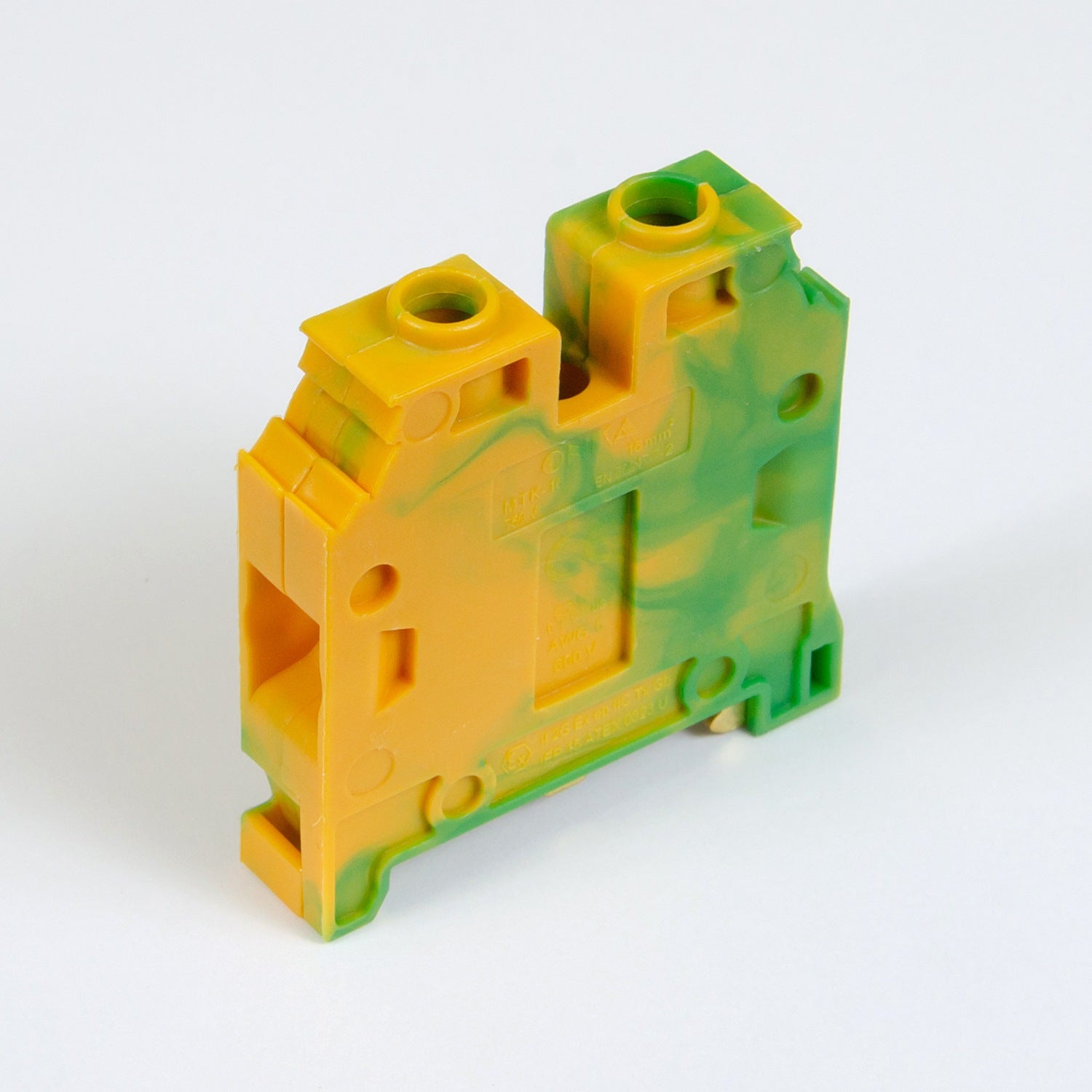

PE threaded rail connector / DIN rail connector 2-wire green-yellow, ONKA, made in Turkey

The ONKA compact terminal rail connectors provide great opportunities for connecting any wires of different cross-sections. Thanks to the transparent housing, the correct arrangement of the wires can be easily checked. The original ONKA quick connectors offer convenience in installation and 100% connection reliability.

Technical parameters

The cross-section of the connected single wire is up to: 16mm2
Color: Green-yellow (camouflage)
The main housing insulating material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 1.1 Nm
Connection position: side / side
Cable strip length: 16 mm
Type of electrical connection: screw clamp
Rated voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
