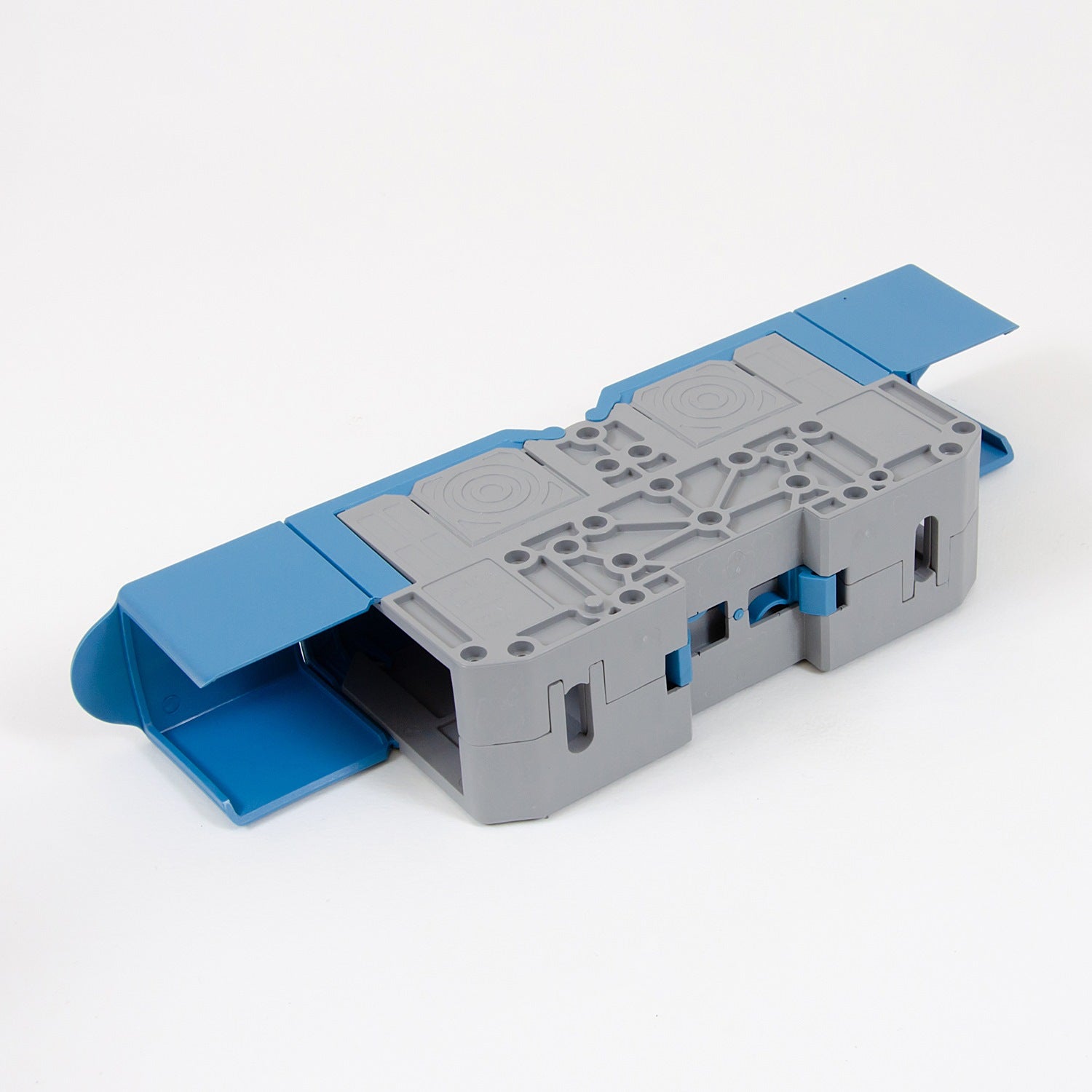

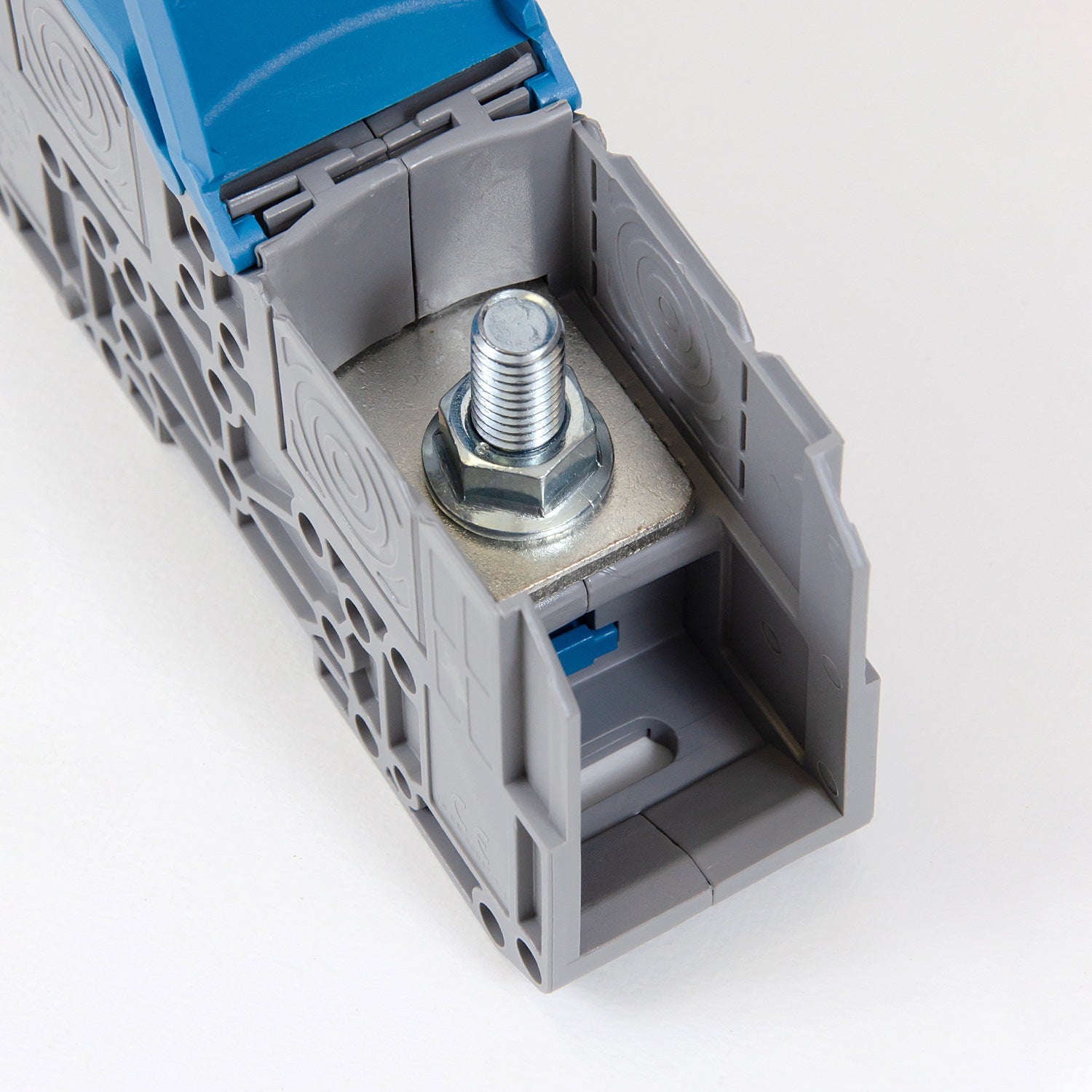

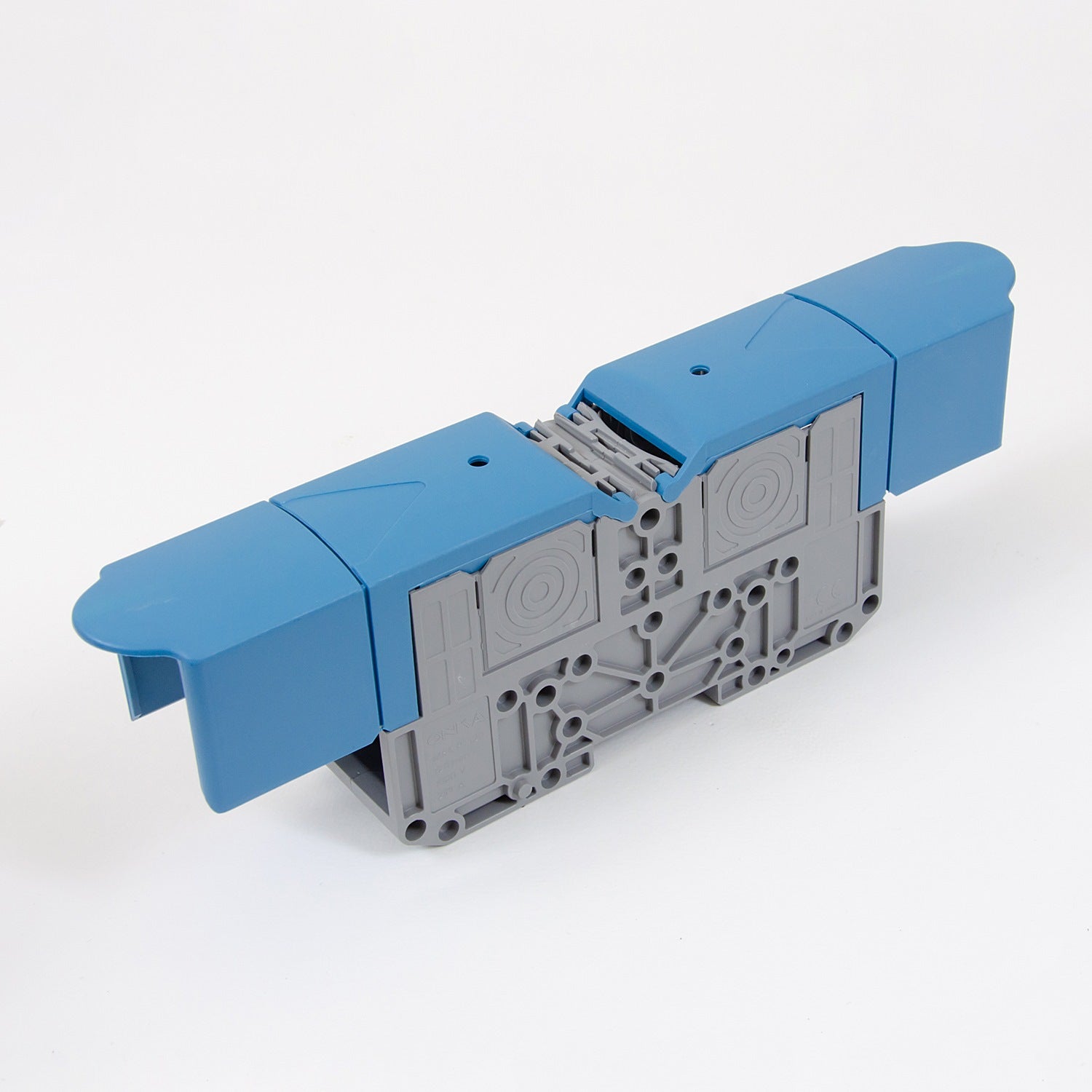

ONKA 120mm2 M10 screw terminal connector DIN rail connector with protective cover, blue, 1030076

M10, 120mm2, threaded rail connector / DIN rail connector with protective cover, blue, ONKA, made in Turkey

The ONKA compact mounting rail connectors provide great opportunities for connecting any wires of various cross-sections. Thanks to the transparent housing, the correct arrangement of the wires can be easily checked. The original ONKA quick connectors ensure convenient installation and 100% connection reliability.

Technical parameters

The cross-section of the connected single wire is up to: 120mm2
Color: blue
The main housing insulating material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: side / lateral
Rated voltage: 1000V
Rated current: 269A
Operating temperature range: -40°C
Operating temperature range: up to 140°C
Mounting method: DIN 35 mm mounting rail
