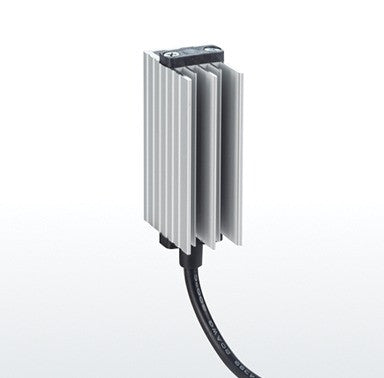

Mini switchboard heater PTC 15W, MPHT15, Plastim

Mini electric (PTC body heater, post-tension heater) switchboard heater with anodized aluminum heat sink and overcurrent protection, DIN rail mountable 15 watts, 110-220 volts AC or DC, MPHT15, Plastim - made in Turkey.

• Heating power: 15W

• Operating voltage: 100-250V AC/DC

• Maximum current: 2A

• Heating element type: self-regulating PTC resistor

• Overcurrent protection: Electronic thermal overload relay

• Electrical connection: 30 cm wired cable, NLE

• IEC protection class: Class II

• Protection degree: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 60x50x27 mm

• Weight: 0.11 kg

Heating elements are used to maintain temperature and reduce humidity in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is obvious that this method does not ensure compliance with modern, stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also guarantee safe and durable operation.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee of safe operation.

Due to the high demands placed on cabinet heaters, Plastim paid the utmost attention to the selection of component suppliers. For example, Schneider Electric is the supplier of PTC heaters.

Agree that this approach to selecting a supplier advantageously distinguishes Plastim's high-quality heaters from cheap Chinese analogues.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
