Plastim

Switchboard plastic transparent door 400x500x175mm IP65 PP3013

In stock - 7 items available
SKU: PP3013
36.396 Ft including VAT

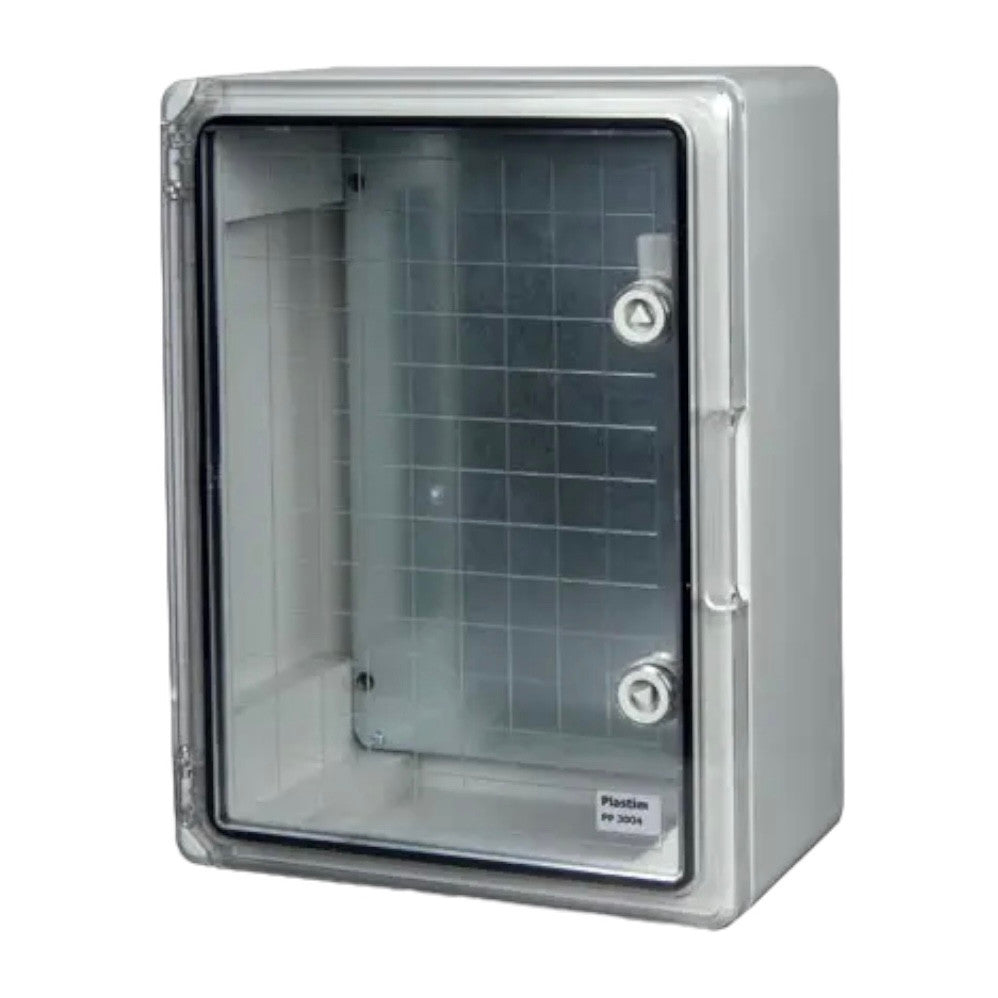

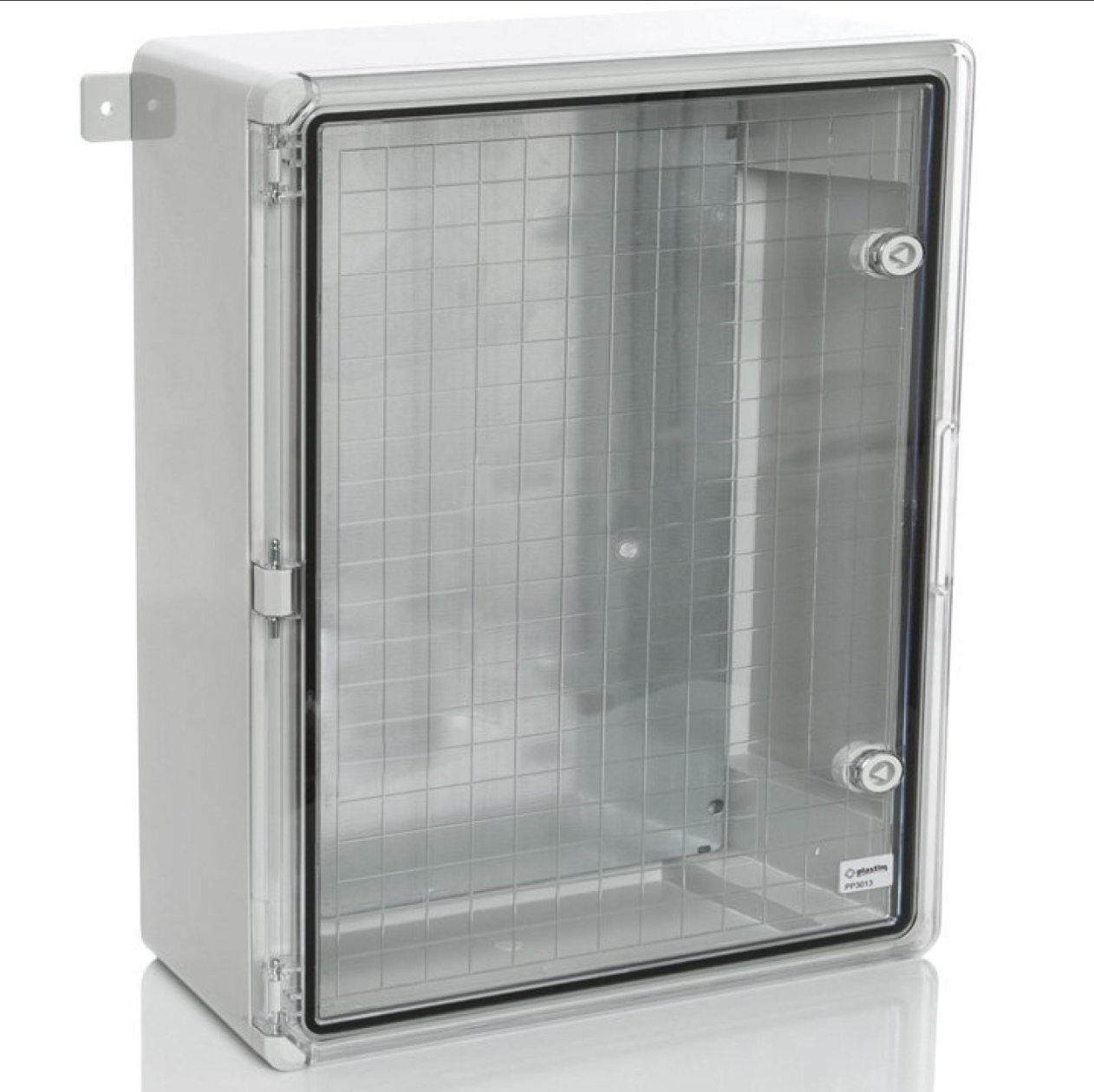

Plastic switchboard, transparent door, dimensions 400x500x175mm, IP65, PP3013 Plastim

The new plastic waterproof covers manufactured by the Turkish company Plastim open a new chapter in the use of plastic protective covers for automation and power distribution tasks.

  • Reinforced boxes with metal spikes

  • New cabinet design with corner reinforcements, as well as increased thickness of the door and the entire product.

  • Increased temperature range in which the protective cover retains all improved properties -35/+60C.

  • Completely corrosion-resistant, lightweight, solid, galvanized metal mounting panel.
  • Can be equipped with transparent doors and DIN reinforced metal pegboard rails;

MAIN TECHNICAL CHARACTERISTICS

  • The mounting panel is made of 1 mm thick galvanized steel.
  • Material: HB halogen-free ABS + polycarbonate (door).
  • Width: 400 mm
  • Height: 500 mm
  • Depth: 175 mm
  • Color: RAL7035 light gray
  • Cover: IP65, IK08
  • Nominal voltage: up to 690 V
  • Maximum current: up to 800 A
  • Operating temperature: -35°C + 65°C
  • Weight: 4.3 kg
