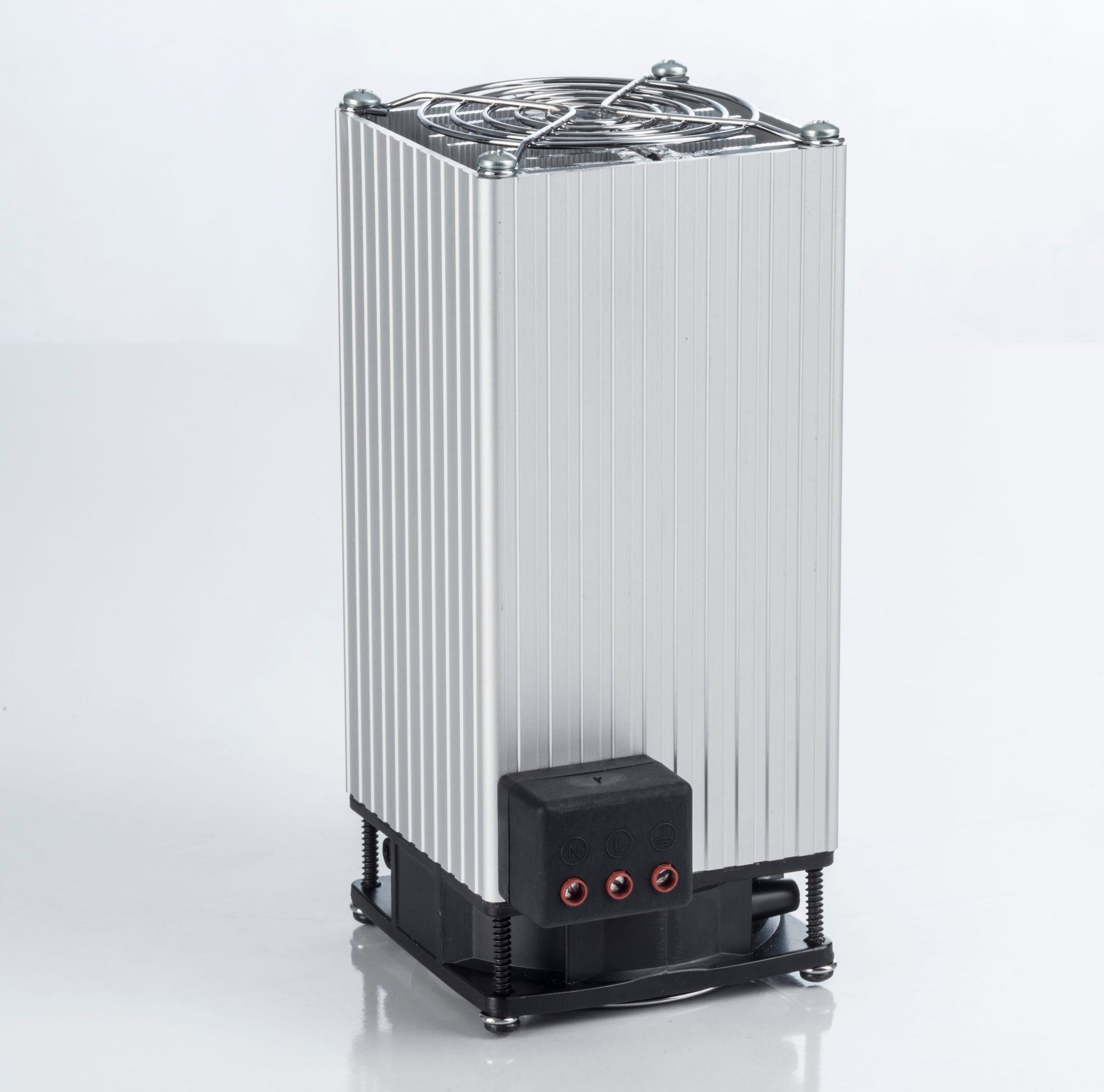

Resistive switchboard with heating fan 500W, PFHT500, PLASTIM

Electric (resistance heating, reheating) switchboard with heating fan, anodized aluminum heat sink and overcurrent protection, DIN rail mountable, 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.

• Heating power: 500W

• Operating voltage: 220/230V AC, 50/60Hz

• Maximum current: 2.4 A

• Resistance heating type.

• Axial fan: 80x80x25mm 35m3/h

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 3-pole NLE terminal

• IEC protection class: Class II

• Degree of protection: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat sink: Aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 182x80x110mm

• Weight: 1.2 kg

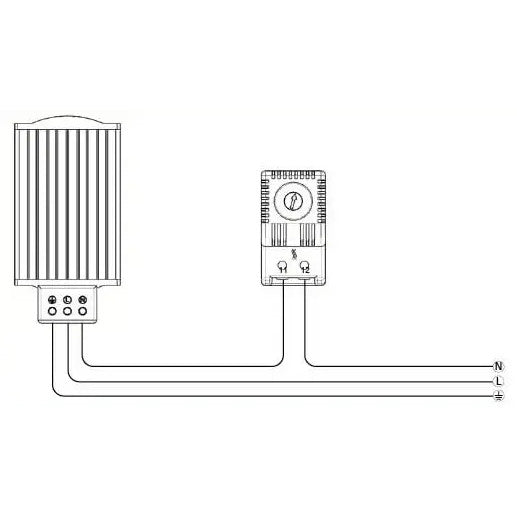

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. both devices can be purchased on our website.
