TENSE

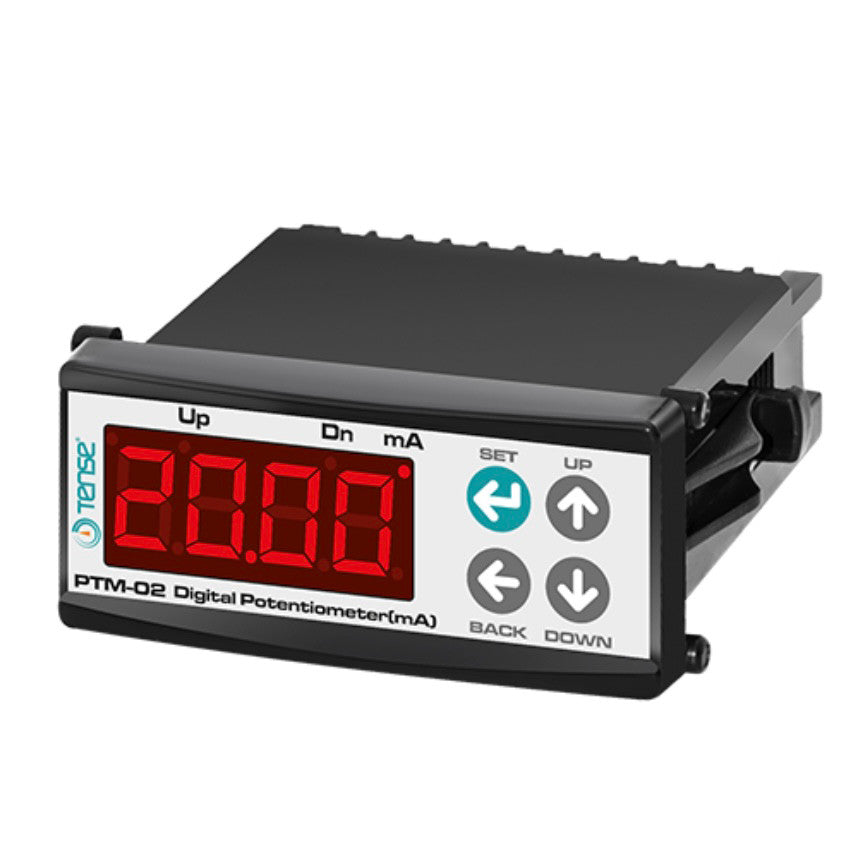

Digital potentiometer current source 4-20mA

Only 1 left
SKU: PTM-02
20.223 Ft including VAT

Digital potentiometers are control devices that produce an analog output between 4-20mA values.

  • Microprocessor based
  • Analog output: 4-20mA
  • Menu entry and analog output control via front panel keys
  • Control of analog output via digital inputs
  • Adjustable upper and lower scale levels
  • Adjustable upper and lower limits for SET
  • Separate function selection for front panel keys and digital inputs to control analog output
  • Password protection
  • SECU setting to enable/disable the SET setting menu entry
  • High accuracy
  • EEPROM memory for storing settings
  • Easy connection with plug-in connectors

TECHNICAL SPECIFICATION

  • Dimensions: 35x77mm
  • Panel cutout: 29x71mm
  • Display: 4-digit 7-segment
  • Analog output: 0-10V or 4-20mA (must be specified when ordering)
  • 0-10V load impedance: >5K
  • 4-20mA max. Voltage: <10V
  • Resolution: 2mV (0-10V), 4μA (4-20mA)
  • Accuracy: ±%1; (Oversizing)
  • User control: Up/down via front panel keys or up/down via digital inputs.

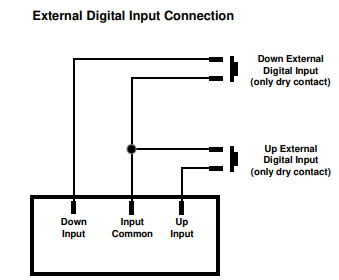

  • Digital inputs: Dry contact input only
  • Power supply: 100..240VAC, 50-60Hz or 24VDC/AC.
  • Power consumption: < 6VA
  • Humidity: 80% up to 30oC, then decreases linearly to 50% at 50oC (non-condensing).
  • Altitude: < 2000 m
  • Protection class: IP20
  • Operating temperature: 0 ... 50 oC
  • Storage temperature: -10oC ... 60oC (without icing)
  • Weight: < 0.5 kg
